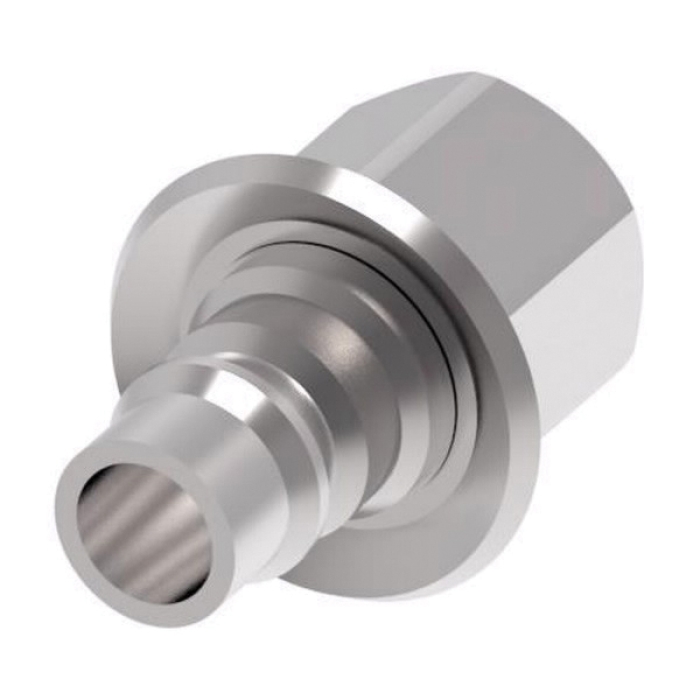

Aeroquip® FD69-1002-08-08
Aeroquip® FD69 Zinc Trivalent-Plated Carbon Steel Water-Blast Ball Lock Coupling with Straight Thru Valve, 1/2 in Male Quick Disconnect x 1/2 in FNPT
- Manufacturers: Danfoss
- Brand Name: Aeroquip®
- Tipco Part No: AER FD69-1002-08-08
- MPN: FD69-1002-08-08
- UPC: 678146038128
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
Aeroquip® Water-Blast Ball Lock Coupling with Straight Thru Valve, FD69 Series, Connection Type 1: Quick Disconnect, Gender 1: Male, Connection Size 1: 1/2 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 1.12 in, 10000 psi, Carbon Steel, Finish: Zinc Trivalent-Plated, Dimensions: 2.34 in L x 1.64 in W x 1.64 in H, -4 to 212 deg F
| Fitting Type | : | Coupling |
| Gender 2 | : | Female |
| Connection Size 2 | : | 1/2 in |
| Thread Size 2 | : | 1/2-14 |
| Hex Size | : | 1.12 in |
| Pressure Rating | : | 10000 psi |
| Material | : | Carbon Steel |
| Finish | : | Zinc Trivalent-Plated |
| Dimensions | : | 2.34 in L x 1.64 in W x 1.64 in H |
| Series | : | FD69 |
| Temperature Rating | : | -4 to 212 deg F |
| Connection 1 | : | 1/2 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Gender 1 | : | Male |
| Connection Size 1 | : | 1/2 in |
| Connection 2 | : | 1/2 in NPT |
| Connection Type 2 | : | NPT |
Danfoss FD69 Series design has a greater surface contact area for long service life in rugged high pressure and water blast applications. The maximum operating pressure is 10000 psi with 40000 psi minimum burst pressure.
- Safety sleeve lock prevents accidental disconnection
- Smooth bore straight through design for high-flow fluid requirements
- Heavy-duty back-up ring prevents O-ring extrusion
Applications: High pressure water blast, bridge/concrete repair, paint stripping and shipyards
