Aeroquip® FD69-1011-08-08

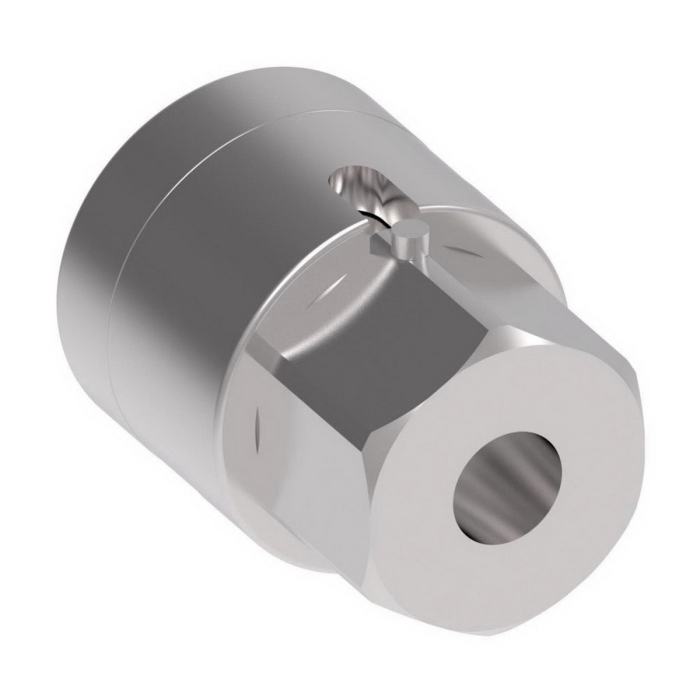

Aeroquip® FD69 Zinc Trivalent-Plated Stainless Steel Water-Blast Ball Lock Coupling with Straight Thru Valve, 1/2 in Female Quick Disconnect x 1/2 in FNPT

Manufacturers: Danfoss
Brand Name: Aeroquip®
Tipco Part No: AER FD69-1011-08-08
MPN: FD69-1011-08-08
UPC: 678146038142
CPN:
Min. Order Qty: 1
Qty. Interval: 1
Register to see Availability

List Price:
Qty Add To Cart
My Catalog
Add / Remove CPN

DESCRIPTION
SPECIFICATIONS
FEATURES
Documents

Aeroquip® Water-Blast Ball Lock Coupling with Straight Thru Valve, FD69 Series, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 1/2 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 1.31 in, 10000 psi, Stainless Steel, Finish: Zinc Trivalent-Plated, Dimensions: 2.13 in L x 1.62 in W x 1.62 in H, -4 to 212 deg F

Fitting Type	:	Coupling
Gender 2	:	Female
Connection Size 2	:	1/2 in
Thread Size 2	:	1/2-14
Hex Size	:	1.31 in
Pressure Rating	:	10000 psi
Material	:	Stainless Steel
Finish	:	Zinc Trivalent-Plated
Dimensions	:	2.13 in L x 1.62 in W x 1.62 in H
Series	:	FD69
Temperature Rating	:	-4 to 212 deg F
Connection 1	:	1/2 in Quick Disconnect
Connection Type 1	:	Quick Disconnect
Gender 1	:	Female
Connection Size 1	:	1/2 in
Connection 2	:	1/2 in NPT
Connection Type 2	:	NPT

Danfoss's FD69 Series design has a greater surface contact area for long service life in rugged high pressure and water blast applications. The maximum operating pressure is 10000 psi with 40000 psi minimum burst pressure.
