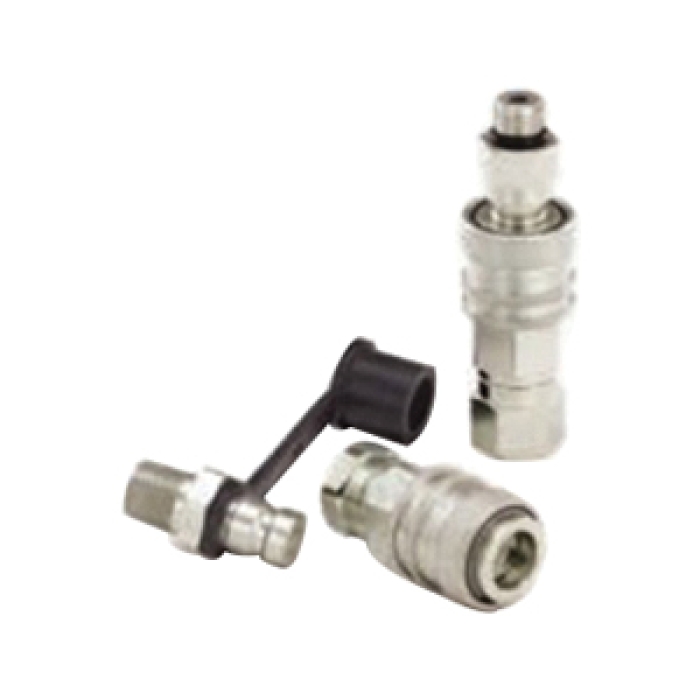

Aeroquip® FD90-1044-05-04
Aeroquip® FD90 Zinc Trivalent-Plated Carbon Steel Straight Ball Lock Coupling with 2-Way Valve, 1/4 in Male Quick Disconnect x 1/2 in Male SAE ORB
- Manufacturers: Danfoss
- Brand Name: Aeroquip®
- Tipco Part No: AER FD90-1044-05-04
- MPN: FD90-1044-05-04
- Min. Order Qty: 1
- Qty. Interval: 1
- Register to see Availability
Aeroquip® Straight Ball Lock Coupling with 2-Way Valve, FD90 Series, Connection Type 1: Quick Disconnect, Gender 1: Male, Connection Size 1: 1/4 in, Connection Type 2: SAE ORB, Gender 2: Male, Connection Size 2: 1/2 in, Thread Size 2: 1/2-20, Hex Size: 0.62 in, 7000 psi, Carbon Steel, Finish: Zinc Trivalent-Plated, Dimensions: 1.32 in L, Dimension Standards: SAE J1502, -4 to 212 deg F
| Fitting Type | : | Coupling |
| Gender 2 | : | Male |
| Connection Size 2 | : | 1/2 in |
| Thread Size 2 | : | 1/2-20 |
| Hex Size | : | 0.62 in |
| Pressure Rating | : | 7000 psi |
| Material | : | Carbon Steel |
| Finish | : | Zinc Trivalent-Plated |
| Dimensions | : | 1.32 in L |
| Dimension Standards | : | SAE J1502 |
| Series | : | FD90 |
| Temperature Rating | : | -4 to 212 deg F |
| Connection 1 | : | 1/4 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Gender 1 | : | Male |
| Connection Size 1 | : | 1/4 in |
| Connection 2 | : | 1/2 in ORB |
| Connection Type 2 | : | SAE ORB |
Danfoss FD90 Series diagnostic coupling is designed to connect and disconnect pressure gauges to hydraulic systems, eliminating the need for permanent gauges. The maximum operating pressure is 7000 psi.
- Automatic sleeve for one hand push-to-connect operation
- Flush face valving provides minimal fluid loss and low air inclusion
- Self-sealing valve design allows connection and disconnection at 500 psi
- Broad range of end configurations for system accessibility
- Diagnostic pressure testing for hydraulic systems
- Sleeve lock safety mechanism
