Aeroquip® FD90-1004-06-04
Send Print
  1. pin-int

Aeroquip® FD90-1004-06-04

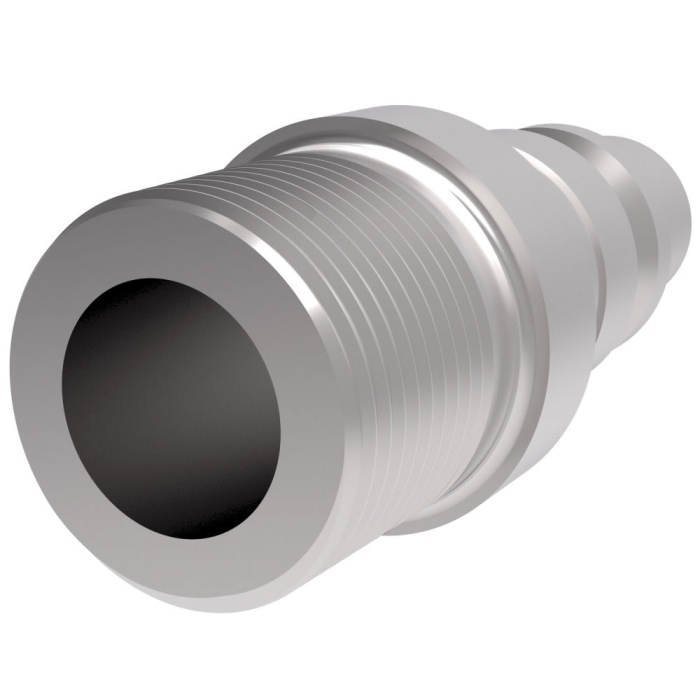

Aeroquip® FD90 Zinc Trivalent-Plated Carbon Steel Valved Coupling Plug with Dust Cap, 1/4 in Male Quick Disconnect x 9/16 in Male SAE O-Ring

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER FD90-1004-06-04
  • MPN: FD90-1004-06-04
  • UPC: 639789301024
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Valved Coupling Plug with Dust Cap, FD90 Series, Connection Type 1: Quick Disconnect, Gender 1: Male, Connection Size 1: 1/4 in, Connection Type 2: SAE O-Ring, Gender 2: Male, Connection Size 2: 9/16 in, Thread Size 2: 9/16-18, Hex Size: 0.69 in, 7000 psi, Carbon Steel, Finish: Zinc Trivalent-Plated, Dimensions: 1.32 in L x 0.69 in W x 0.69 in H, Dimension Standards: SAE J1502, -40 to 250 deg F

Fitting Type      :      Plug
Gender 2      :      Male
Connection Size 2      :      9/16 in
Thread Size 2      :      9/16-18
Hex Size      :      0.69 in
Pressure Rating      :      7000 psi
Material      :      Carbon Steel
Finish      :      Zinc Trivalent-Plated
Dimensions      :      1.32 in L x 0.69 in W x 0.69 in H
Dimension Standards      :      SAE J1502
Series      :      FD90
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      1/4 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Gender 1      :      Male
Connection Size 1      :      1/4 in
Connection 2      :      9/16 in O-Ring
Connection Type 2      :      SAE O-Ring

Danfoss's FD90 Series diagnostic coupling is designed to connect and disconnect pressure gauges to hydraulic systems, eliminating the need for permanent gauges. The maximum operating pressure is 7000 psi.

  • Automatic sleeve for one hand push-to-connect operation
  • Flush face valving provides minimal fluid loss and low air inclusion
  • Self sealing valve design allows connection and disconnection at 500 psi
  • Broad range of end configurations for system accessibility
  • Buna-N seal material

Applications: Diagnostic pressure testing for hydraulic systems
