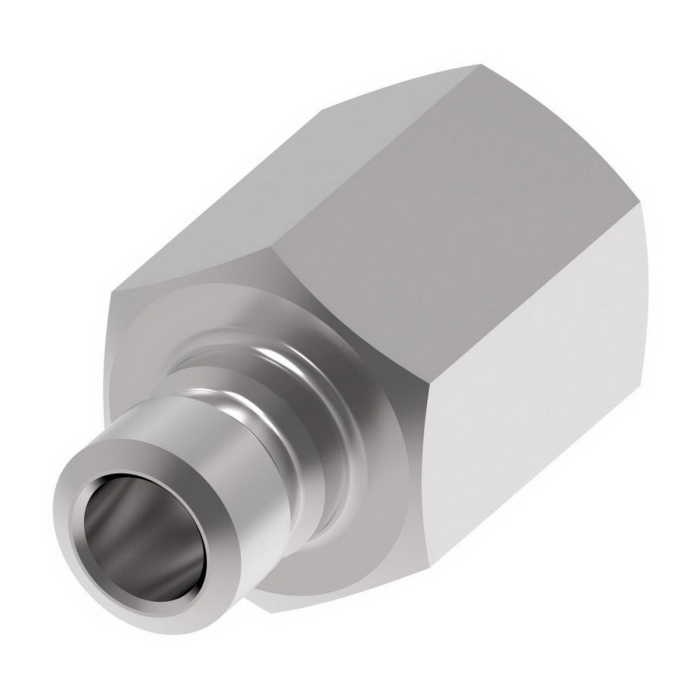

Aeroquip® Coupling Plug, Flo-Temp Series, Connection Type 1: Quick Disconnect, Gender 1: Male, Connection Size 1: 1/4 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, Hex Size: 0.63 in, 200 psi, Brass, Dimensions: 1.2 in L x 0.72 in W x 0.72 in H, -30 to 450 deg F
| Fitting Type | : | Plug |
| Gender 2 | : | Female |
| Connection Size 2 | : | 1/4 in |
| Thread Size 2 | : | 1/4-18 |
| Hex Size | : | 0.63 in |
| Pressure Rating | : | 200 psi |
| Material | : | Brass |
| Dimensions | : | 1.2 in L x 0.72 in W x 0.72 in H |
| Series | : | Flo-Temp |
| Temperature Rating | : | -30 to 450 deg F |
| Connection 1 | : | 1/4 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Gender 1 | : | Male |
| Connection Size 1 | : | 1/4 in |
| Connection 2 | : | 1/4 in NPT |
| Connection Type 2 | : | NPTF |
Danfoss's Flo-Temp™ quick disconnect couplings provide the flow needed to cool or heat molds and die-casting dies. Sockets are available non-valved for maximum flow and valved to prevent fluid loss when disconnected. Flo-Temp couplings can be used with water-glycol, hot water and hot oil.
- Non-valved straight through models for maximum flow
- Valved sockets/females for automatic shut-off when line is disconnected
- Brass plugs/males with male pipe thread for recessed-mounting to avoid damage to plugs/males when molds are being changed or stored
Applications: Injection molding, heating and cooling
