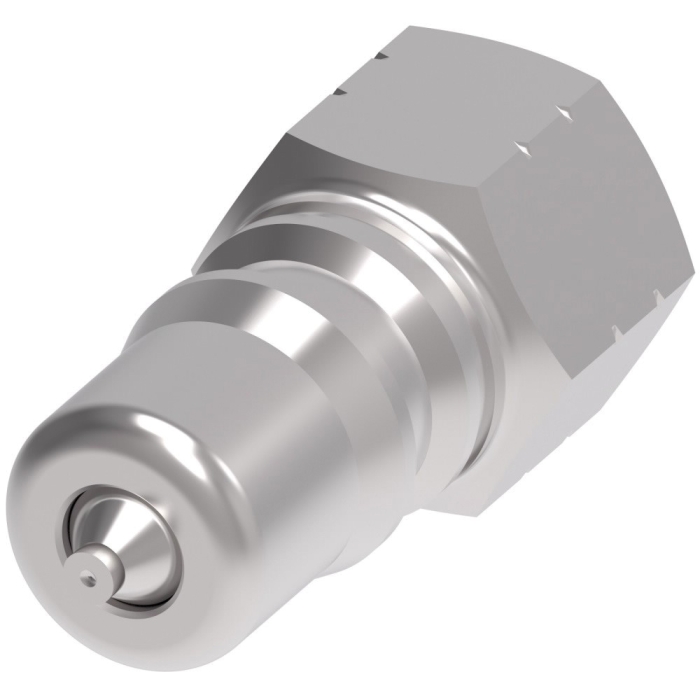

Aeroquip® Coupling Plug, HK Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1/2 in, Connection Type 2: BSPP, Gender 2: Female, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, 303 Stainless Steel, Dimension Standards: ISO 7241-1 Series B
| Fitting Type | : | Plug |
| Gender 2 | : | Female |
| Connection Size 2 | : | 1/2 in |
| Thread Size 2 | : | 1/2-14 |
| Material | : | 303 Stainless Steel |
| Dimension Standards | : | ISO 7241-1 Series B |
| Series | : | HK |
| Connection 1 | : | 1/2 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Connection Size 1 | : | 1/2 in |
| Connection 2 | : | 1/2 in BSPP |
| Connection Type 2 | : | BSPP |
Danfoss's HK Series stainless steel is a general-purpose industrial interchange coupling available in valved or non-valved designs, offered in 303/316 grades of stainless steel for excellent corrosion resistance in rugged applications. The HK Series features a ball latch mechanism with automatic self-sealing poppet valves.
- 303/316 stainless steel construction for greater corrosion resistance and fluid compatibility
- Self sealing poppet valve design provides excellent high and low pressure sealing
- FKM seal
Applications: Machine building, mining, metals and minerals, mobile machinery and equipment, oil and gas
Catalog/Catalog Cut Sheet
