Aeroquip® LL3H21SL HSN LL3H21SL | Tipco Technologies
Aeroquip® LL3H21SL
Send Print
  1. pin-int

Aeroquip® LL3H21SL

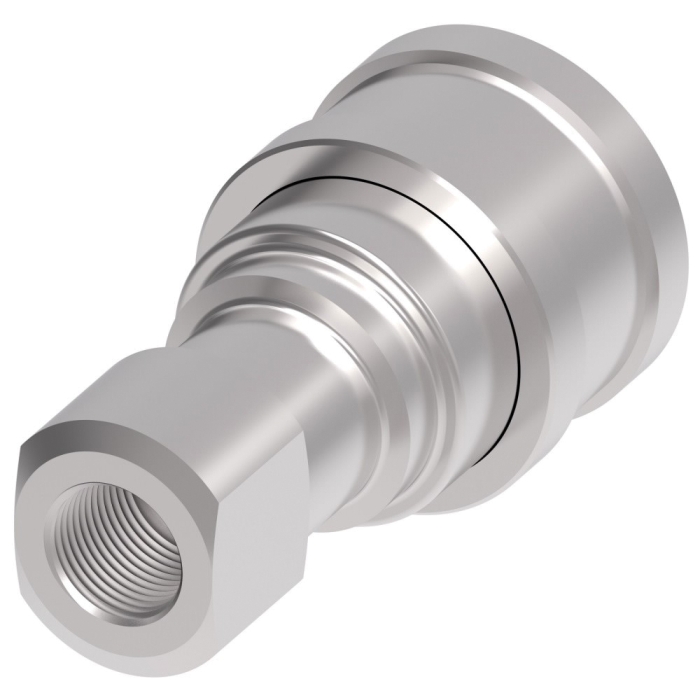

Aeroquip® HK Series 303 Stainless Steel Coupling with Sleeve Lock, 3/8 in Quick Disconnect x 3/8 in FNPTF

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: HSN LL3H21SL
  • MPN: LL3H21SL
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Coupling with Sleeve Lock, HK Series, Connection Type 1: Quick Disconnect, Connection Size 1: 3/8 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 3/8 in, Thread Size 2: 3/8-18, 3700 psi, 303 Stainless Steel, Dimension Standards: ISO 7241-1B, 40 - 250 deg F

Fitting Type      :      Coupling
Gender 2      :      Female
Connection Size 2      :      3/8 in
Thread Size 2      :      3/8-18
Pressure Rating      :      3700 psi
Material      :      303 Stainless Steel
Dimension Standards      :      ISO 7241-1B
Series      :      HK
Temperature Rating      :      40 - 250 deg F
Connection 1      :      3/8 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      3/8 in
Connection 2      :      3/8 in NPT
Connection Type 2      :      NPTF

Danfoss's HK Series coupling sets the industry standard for ISO B couplings. The HK Series features a rugged ball latch mechanism with automatic self-sealing poppet valves in a wide array of port configurations.

  • Self sealing poppet valve design provides excellent high and low pressure sealing

Applications: Hydraulic circuits and general fluid conveyance in machine building, mining, metals and minerals, mobile machinery and equipment, oil and gas, rail, vehicles
