Aeroquip® LL2H16SL138 HSN LL2H16SL138 | Tipco Technologies
Aeroquip® LL2H16SL138
Send Print
  1. pin-int

Aeroquip® LL2H16SL138

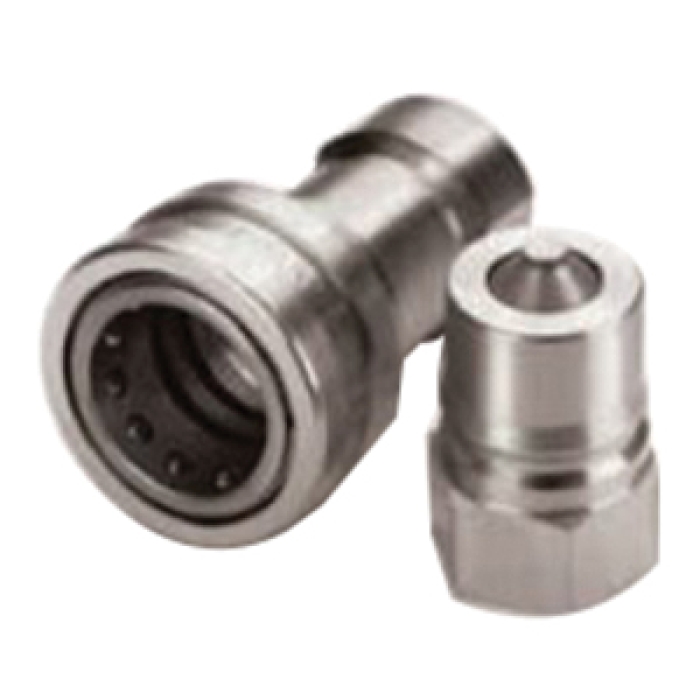

Aeroquip® HK Series Stainless Steel Quick Disconnect Coupling, 1/4 in Female Socket x 1/4 in FNPTF

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: HSN LL2H16SL138
  • MPN: LL2H16SL138
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Quick Disconnect Coupling, HK Series, Connection Type 1: Socket, Gender 1: Female, Connection Size 1: 1/4 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, Stainless Steel, Dimensions: 2.26 in L x 1.14 in W, Dimension Standards: ISO 7241-1 Series B

Fitting Type      :      Coupling
Gender 2      :      Female
Connection Size 2      :      1/4 in
Thread Size 2      :      1/4-18
Material      :      Stainless Steel
Dimensions      :      2.26 in L x 1.14 in W
Dimension Standards      :      ISO 7241-1 Series B
Series      :      HK
Connection 1      :      1/4 in Socket
Connection Type 1      :      Socket
Gender 1      :      Female
Connection Size 1      :      1/4 in
Connection 2      :      1/4 in NPT
Connection Type 2      :      NPTF

Danfoss’s HK Series stainless steel is a general-purpose industrial interchange coupling available in valved or non-valved designs, offered in 303/316 grades of stainless steel for excellent corrosion-resistance in rugged applications. The HK Series features a ball latch mechanism with automatic self-sealing poppet valves.

  • Self-sealing poppet valve design provides excellent high and low pressure sealing
  • Standard seal material Buna-N

Applications: Agriculture, construction, fluid transfer, general industry, hydraulic tool, military, transportation
