Aeroquip® 12H46143
Send Print
  1. pin-int

Aeroquip® 12H46143

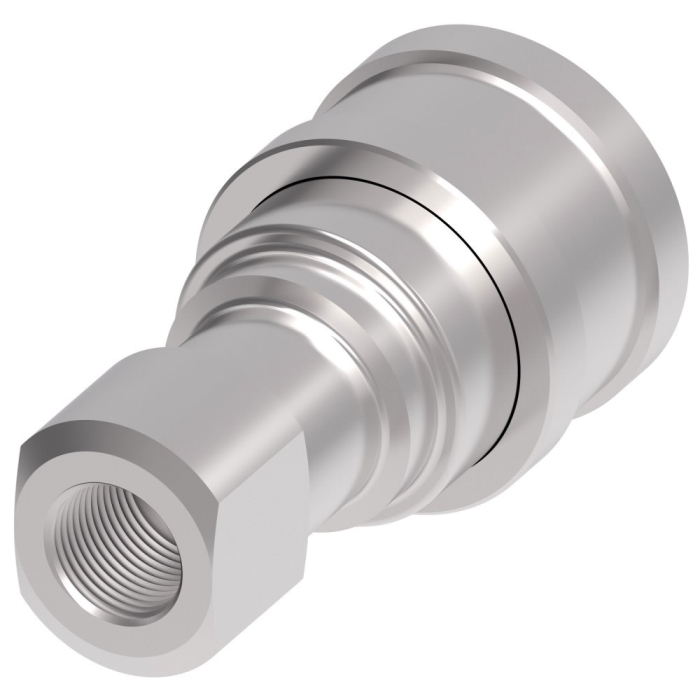

Aeroquip® HK Series Steel Coupling, 1-1/2 in Quick Disconnect x 1-1/2 in FNPTF

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: HSN 12H46143
  • MPN: 12H46143
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Coupling, HK Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1-1/2 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1-1/2 in, Thread Size 2: 1-1/2-11-1/2, Hex Size: 2.38 in, 2200 psi, Steel, Dimension Standards: ISO 7241-1B, -15 to 400 deg F

Fitting Type      :      Coupling
Gender 2      :      Female
Connection Size 2      :      1-1/2 in
Thread Size 2      :      1-1/2-11-1/2
Hex Size      :      2.38 in
Pressure Rating      :      2200 psi
Material      :      Steel
Dimension Standards      :      ISO 7241-1B
Series      :      HK
Temperature Rating      :      -15 to 400 deg F
Connection 1      :      1-1/2 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      1-1/2 in
Connection 2      :      1-1/2 in NPT
Connection Type 2      :      NPTF

Danfoss's HK Series coupling sets the industry standard for ISO B couplings. The HK Series features a rugged ball latch mechanism with automatic self-sealing poppet valves in a wide array of port configurations.

  • Self sealing poppet valve design provides excellent high and low pressure sealing
  • FKM seal

Applications: Hydraulic circuits and general fluid conveyance in machine building, mining, metals and minerals, mobile machinery and equipment, oil and gas, rail, vehicles
