Aeroquip® 2K16C HSN 2K16C | Tipco Technologies
Aeroquip® 2K16C
Send Print
  1. pin-int

Aeroquip® 2K16C

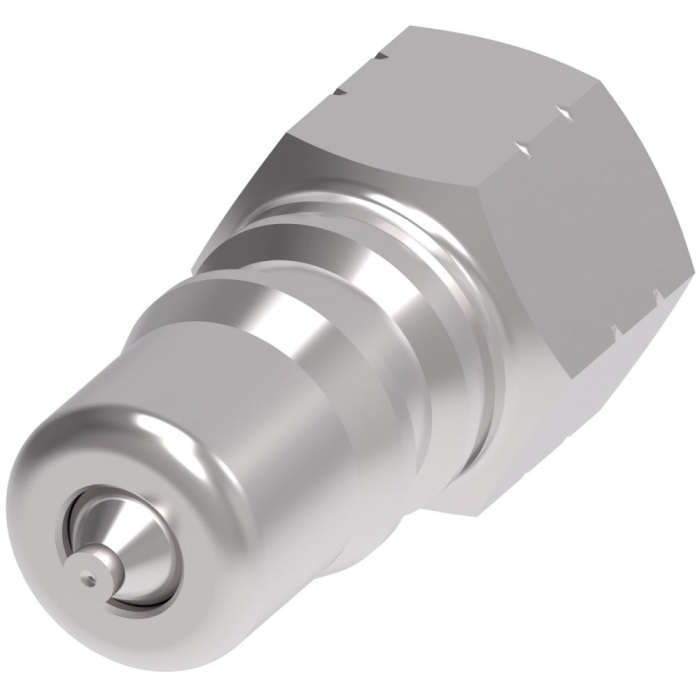

Aeroquip® HK Series Zinc Trivalent-Plated Carbon Steel Coupling Plug, 1/4 in Male Quick Disconnect x 1/4 in FNPTF

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: HSN 2K16C
  • MPN: 2K16C
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Coupling Plug, HK Series, Connection Type 1: Quick Disconnect, Gender 1: Male, Connection Size 1: 1/4 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, Hex Size: 3/4 in, Carbon Steel, Finish: Zinc Trivalent-Plated, Dimension Standards: ISO 7241-1 Series B, 40 - 250 deg F

Fitting Type      :      Plug
Gender 2      :      Female
Connection Size 2      :      1/4 in
Thread Size 2      :      1/4-18
Hex Size      :      3/4 in
Material      :      Carbon Steel
Finish      :      Zinc Trivalent-Plated
Dimension Standards      :      ISO 7241-1 Series B
Series      :      HK
Temperature Rating      :      40 - 250 deg F
Connection 1      :      1/4 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Gender 1      :      Male
Connection Size 1      :      1/4 in
Connection 2      :      1/4 in NPT
Connection Type 2      :      NPTF

Danfoss's HK Series coupling sets the industry standard for ISO B couplings. The HK Series features a rugged ball latch mechanism with automatic self-sealing poppet valves in a wide array of port configurations.

  • Self sealing poppet valve design provides excellent high and low pressure sealing

Applications: Hydraulic circuits and general fluid conveyance in machine building, mining, metals and minerals, mobile machinery and equipment, oil and gas, rail, vehicles
