Aeroquip® HP3SB37M HSN HP3SB37M | Tipco Technologies
Aeroquip® HP3SB37M
Send Print
  1. pin-int

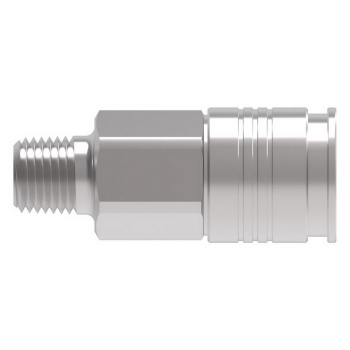

Aeroquip® HP3SB37M

Aeroquip® HP3 Zinc Trivalent-Plated Carbon Steel Coupling, 3/8 in Female Quick Disconnect x 3/8 in MNPT

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: HSN HP3SB37M
  • MPN: HP3SB37M
  • UPC: 678146110077
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Coupling, HP3 Series, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 3/8 in, Connection Type 2: NPT, Gender 2: Male, Connection Size 2: 3/8 in, Thread Size 2: 3/8-18, Hex Size: 0.94 in, 10000 psi, Carbon Steel, Finish: Zinc Trivalent-Plated, Dimensions: 2.84 in L x 1.38 in W x 1.38 in H, -13 to 212 deg F

Fitting Type      :      Coupling
Gender 2      :      Male
Connection Size 2      :      3/8 in
Thread Size 2      :      3/8-18
Hex Size      :      0.94 in
Pressure Rating      :      10000 psi
Material      :      Carbon Steel
Finish      :      Zinc Trivalent-Plated
Dimensions      :      2.84 in L x 1.38 in W x 1.38 in H
Series      :      HP3
Temperature Rating      :      -13 to 212 deg F
Connection 1      :      3/8 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Gender 1      :      Female
Connection Size 1      :      3/8 in
Connection 2      :      3/8 in NPT
Connection Type 2      :      NPT

Danfoss's HP3 Series hydraulic jack/enerpac interchange is designed for high pressure applications up to 700 bar (10000 psi).

  • Thread together design
  • Ball valve
  • Buna-N seal material
