Aeroquip® 8GHS75FS
Send Print
  1. pin-int

Aeroquip® 8GHS75FS

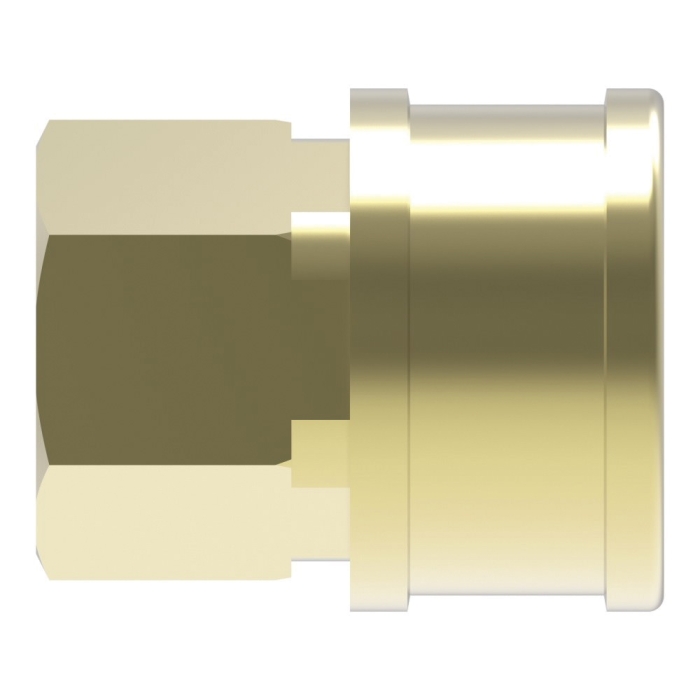

Aeroquip® ST Series Brass Coupling, 1 in Female Quick Disconnect x 3/4 in FNPSM

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: HSN 8GHS75FS
  • MPN: 8GHS75FS
  • UPC: 678146105011
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Coupling, ST Series, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 1 in, Connection Type 2: NPSM, Gender 2: Female, Connection Size 2: 3/4 in, Thread Size 2: 3/4-14, 1300 psi, Brass, Dimensions: 1.66 in L x 1.055 in W x 1.055 in H, -40 to 250 deg F

Fitting Type      :      Coupling
Gender 2      :      Female
Connection Size 2      :      3/4 in
Thread Size 2      :      3/4-14
Pressure Rating      :      1300 psi
Material      :      Brass
Dimensions      :      1.66 in L x 1.055 in W x 1.055 in H
Series      :      ST
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      1 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Gender 1      :      Female
Connection Size 1      :      1 in
Connection 2      :      3/4 in NPSM
Connection Type 2      :      NPSM

Applications: For fluid transfer, chemical, food and beverage, injection molding, marine, medical, pressure washing, and steam cleaning
