Aeroquip® 6S32
Send Print
  1. pin-int

Aeroquip® 6S32

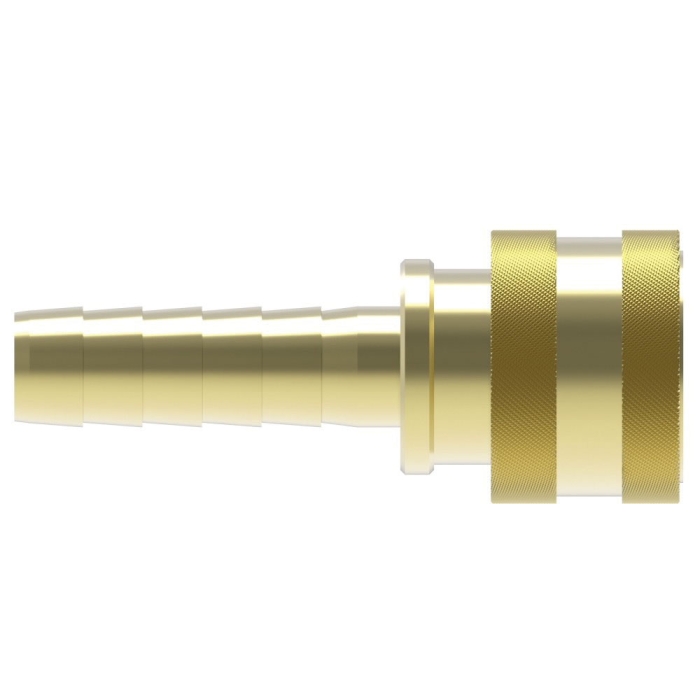

Aeroquip® ST Series Brass Coupling, 3/4 in Female Quick Disconnect x 3/4 in Hose Barb

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: HSN 6S32
  • MPN: 6S32
  • UPC: 678146201416
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Coupling, ST Series, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 3/4 in, Connection Type 2: Hose Barb, Connection Size 2: 3/4 in, 1700 psi, Brass, Dimensions: 3.19 in L x 1.72 in W x 1.72 in H, -40 to 250 deg F

Fitting Type      :      Coupling
Connection Size 2      :      3/4 in
Pressure Rating      :      1700 psi
Material      :      Brass
Dimensions      :      3.19 in L x 1.72 in W x 1.72 in H
Series      :      ST
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      3/4 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Gender 1      :      Female
Connection Size 1      :      3/4 in
Connection 2      :      3/4 in Hose Barb
Connection Type 2      :      Hose Barb

Danfoss's ST Series is a straight through coupling that is designed for use where minimum pressure drop is required and valving is not needed. These couplings are suited for various and versatile fluid transfer type systems.

  • Ball latching mechanism
  • Smooth bore permits free-flow of liquid or gas
  • Buna-N seal material

Applications: Fluid transfer, chemical, food and beverage, injection molding, marine, medical, pressure washing, steam cleaning
