Aeroquip® B4T26
Send Print
  1. pin-int

Aeroquip® B4T26

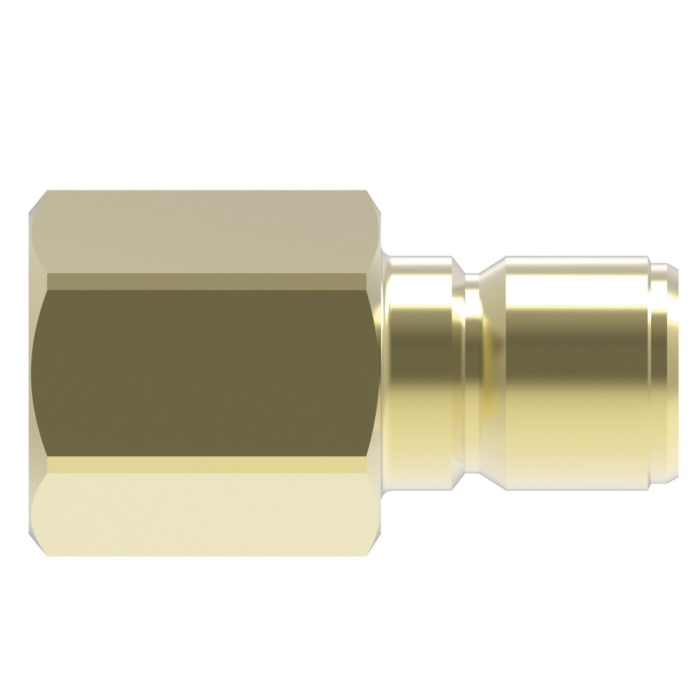

Aeroquip® ST Series Brass Coupling Plug, 1/2 in Male Quick Disconnect x 1/2 in FNPTF

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: HSN B4T26
  • MPN: B4T26
  • UPC: 678146107282
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Coupling Plug, ST Series, Connection Type 1: Quick Disconnect, Gender 1: Male, Connection Size 1: 1/2 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 1 in, 2200 psi, Brass, Dimensions: 1.92 in L x 1.15 in W x 1.15 in H, -40 to 250 deg F

Fitting Type      :      Plug
Gender 2      :      Female
Connection Size 2      :      1/2 in
Thread Size 2      :      1/2-14
Hex Size      :      1 in
Pressure Rating      :      2200 psi
Material      :      Brass
Dimensions      :      1.92 in L x 1.15 in W x 1.15 in H
Series      :      ST
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      1/2 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Gender 1      :      Male
Connection Size 1      :      1/2 in
Connection 2      :      1/2 in NPT
Connection Type 2      :      NPTF

Danfoss's ST Series is a straight through coupling that is designed for use where minimum pressure drop is required and valving is not needed. These couplings are suited for various and versatile fluid transfer type systems.

  • Ball latching mechanism
  • Smooth bore permits free-flow of liquid or gas
  • Buna-N seal material

Applications: Fluid transfer, chemical, food and beverage, injection molding, marine, medical, pressure washing, steam cleaning
