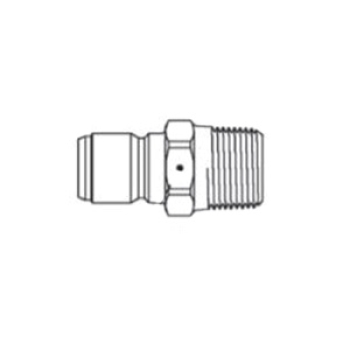

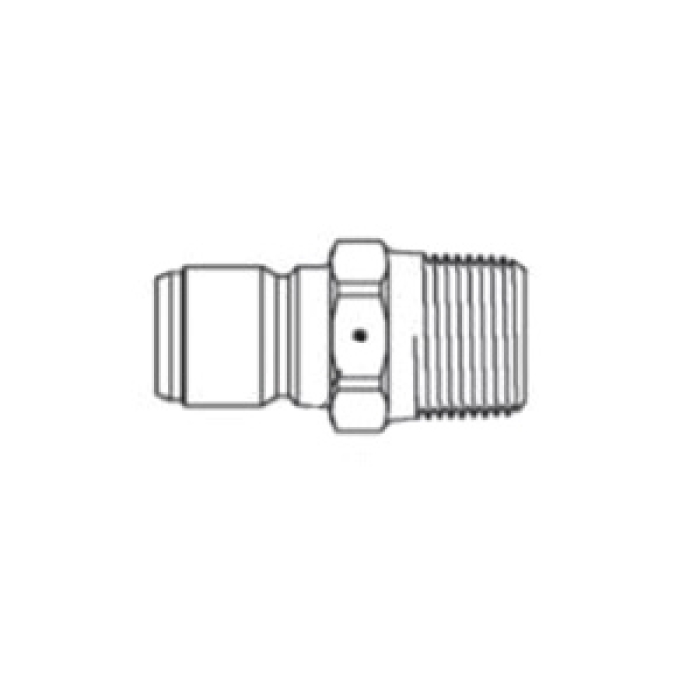

Aeroquip® Coupling Plug, ST Series, Connection Type 1: Quick Disconnect, Connection Size 1: 3/4 in, Connection Type 2: BSPP, Gender 2: Male, Connection Size 2: 3/4 in, Thread Size 2: 3/4-14, Hex Size: 1-1/4 in, Brass, Dimensions: 2.08 in L x 1.44 in W
| Fitting Type | : | Plug |
| Gender 2 | : | Male |
| Connection Size 2 | : | 3/4 in |
| Thread Size 2 | : | 3/4-14 |
| Hex Size | : | 1-1/4 in |
| Material | : | Brass |
| Dimensions | : | 2.08 in L x 1.44 in W |
| Series | : | ST |
| Connection 1 | : | 3/4 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Connection Size 1 | : | 3/4 in |
| Connection 2 | : | 3/4 in BSPP |
| Connection Type 2 | : | BSPP |
Danfoss's ST Series is a straight through coupling that is designed for use where minimum pressure drop is required and valving is not needed. These couplings are suited for various and versatile fluid transfer type systems.
- Ball latching mechanism
- Smooth bore permits free-flow of liquid or gas
- Standard seal material Buna-N
Applications: Fluid transfer, chemical, food and beverage, injection molding, marine, medical, pressure washing, steam cleaning
