Aeroquip® LL3S22

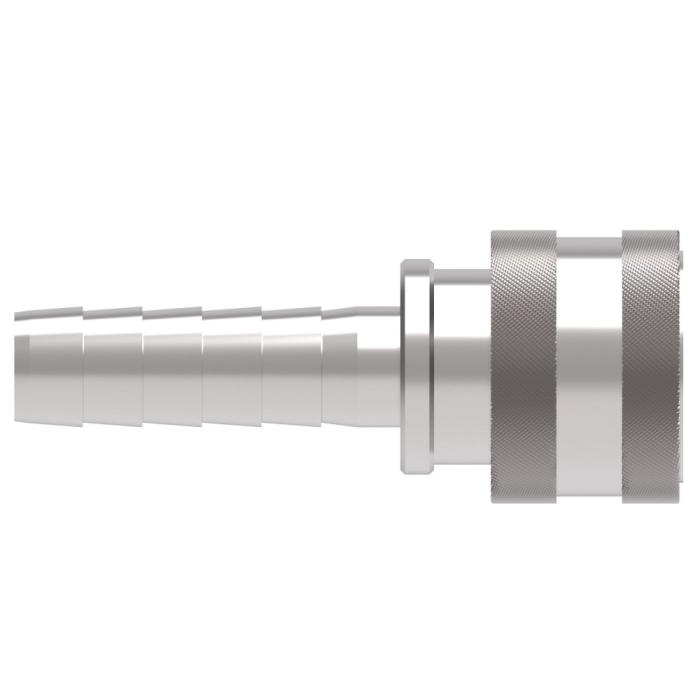

Aeroquip® ST Series Stainless Steel Coupling, 3/8 in Female Quick Disconnect x 3/8 in FNPTF

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: HSN LL3S22143
  • MPN: LL3S22
  • UPC: 678146159182
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Coupling, ST Series, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 3/8 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 3/8 in, 6300 psi, Stainless Steel, Dimensions: 2.09 in L x 1.16 in W x 1.16 in H, -40 to 250 deg F

Fitting Type      :      Coupling
Gender 2      :      Female
Connection Size 2      :      3/8 in
Pressure Rating      :      6300 psi
Material      :      Stainless Steel
Dimensions      :      2.09 in L x 1.16 in W x 1.16 in H
Series      :      ST
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      3/8 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Gender 1      :      Female
Connection Size 1      :      3/8 in
Connection 2      :      3/8 in NPT
Connection Type 2      :      NPTF

Danfoss's ST Series is a straight through coupling that is designed for use where minimum pressure drop is required and valving is not needed. These couplings are suited for various and versatile fluid transfer type systems.

  • Ball latching mechanism
  • Smooth bore permits free-flow of liquid or gas
  • Buna-N seal material

Applications: Fluid transfer, chemical, food and beverage, injection molding, marine, medical, pressure washing, steam cleaning
