Aeroquip® WA5652700
Send Print
  1. pin-int

Aeroquip® WA5652700

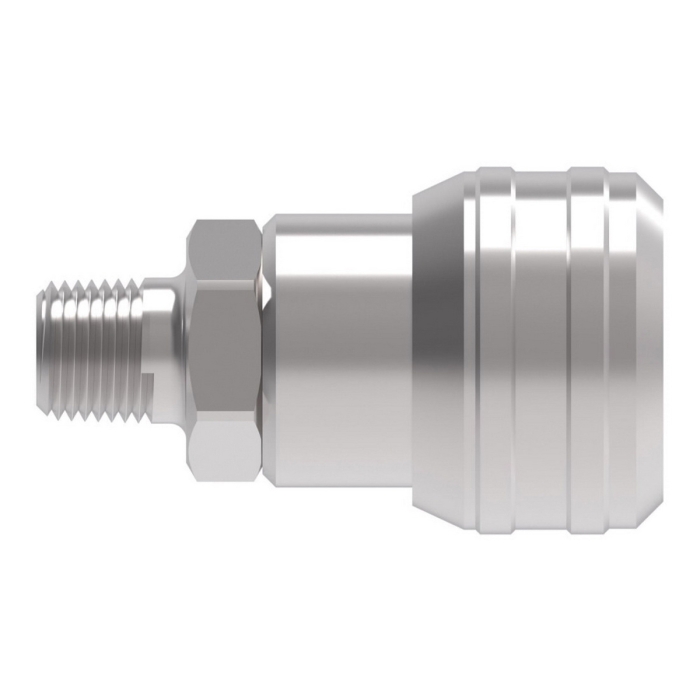

Aeroquip® W56000 Zinc Trivalent-Plated Carbon Steel Coupling, 3/8 in Female Quick Disconnect x 3/8 in FNPT

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: HSN WA5652700
  • MPN: WA5652700
  • UPC: 678146165930
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Coupling, W56000 Series, Connection Type 1: Quick Disconnect, Gender 1: Female, Connection Size 1: 3/8 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 3/8 in, Hex Size: 1.06 in, 10000 psi, Carbon Steel, Finish: Zinc Trivalent-Plated, Dimensions: 2.76 in L x 1.38 in W x 1.38 in H

Fitting Type      :      Coupling
Gender 2      :      Female
Connection Size 2      :      3/8 in
Hex Size      :      1.06 in
Pressure Rating      :      10000 psi
Material      :      Carbon Steel
Finish      :      Zinc Trivalent-Plated
Dimensions      :      2.76 in L x 1.38 in W x 1.38 in H
Series      :      W56000
Connection 1      :      3/8 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Gender 1      :      Female
Connection Size 1      :      3/8 in
Connection 2      :      3/8 in NPT
Connection Type 2      :      NPT

Danfoss’s W56000 Series is a screw to connect coupling designed to operate at pressures exceeding 10000 psi or 700 bar. Rugged design makes these couplings suitable for hydraulic jacks and lift loading.

  • Screw to connect double shut-off with poppet valve
  • Designed and manufactured under Article 3.3 of the European Pressure Equipment Directive 97/23 EC
  • Interchanges with other couplings with the same profile
  • Standard seal material Buna-N

Applications: Hydraulic jacks, lifts and emergency rescue equipment
