Dixon® 8EBF8-B
Send Print
  1. pin-int

Dixon® 8EBF8-B

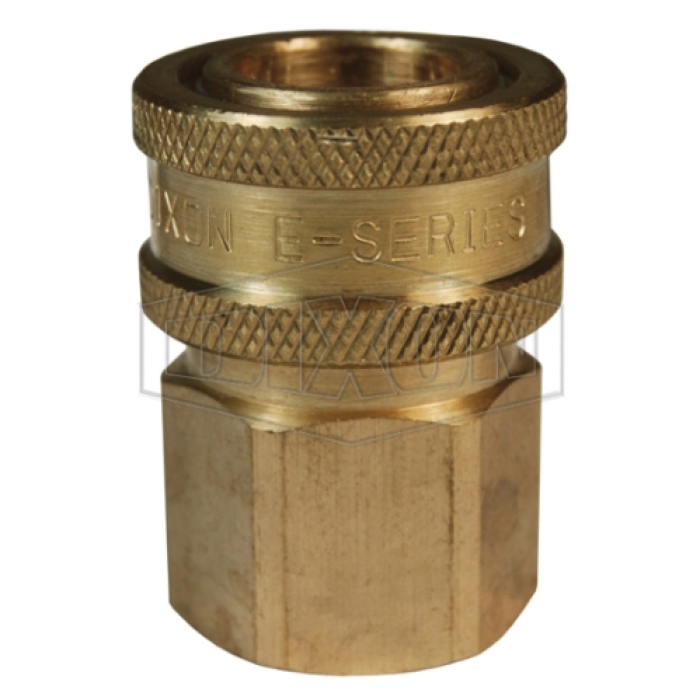

DIXON 8EBF8-B Coupler, 1 in Female BSPP x 1 in Female Threaded, Brass

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 8EB8-B
  • MPN: 8EBF8-B
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

DIXON Coupler, E Series, 1 x 1 in Connection, Female BSPP x Female Threaded, Material Construction: Brass, 1-3/4 in Hex, 2 in Dia x 2.41 in L, 1200 psi Maximum Operating Pressure, -40 to 250 deg F Operating Temperature, Nitrile Rubber Seal

Fitting Type      :      Coupler
Material      :      Brass
Connection Size 1      :      1 in
Connection Size 2      :      1 in
Dimensions      :      2 in Dia x 2.41 in L
Hex Size      :      1-3/4 in
  • Straight-Through Pressure-Wash Interchange
  • Interchanges with Parker ST, Foster FST, Hansen ST, and Tomco ST couplings
  • These couplers have no internal valves, providing maximum flow with minimum pressure drop
  • pdfSpecification Sheet https://assets.unilogcorp.com/526/ITEM/DOC/DIXON_8EBF8_B_Specification_Sheet.pdf
