Dixon® AG4BF4

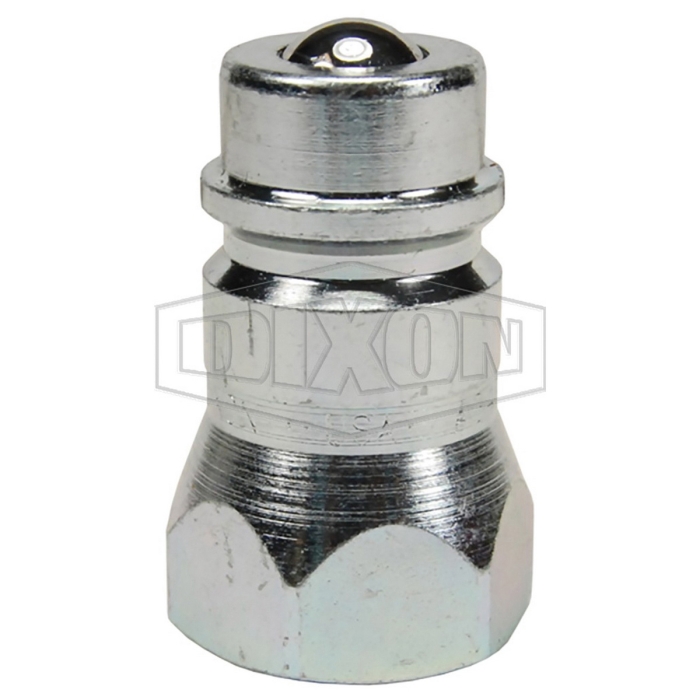

Dixon® AG Series Trivalent Chrome-Plated Steel Ball Valve Plug, 1/2 in Quick Disconnect x 1/2 in Female BSPP

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN AG4BF4
  • MPN: AG4BF4
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Ball Valve Plug, AG Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1/2 in, Connection Type 2: BSPP, Gender 2: Female, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 1-1/16 in, 4000 psi, Steel, Finish: Trivalent Chrome-Plated, Dimensions: 1.21 in OD x 1.95 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Plug
Gender 2      :      Female
Connection Size 2      :      1/2 in
Thread Size 2      :      1/2-14
Hex Size      :      1-1/16 in
Pressure Rating      :      4000 psi
Material      :      Steel
Finish      :      Trivalent Chrome-Plated
Dimensions      :      1.21 in OD x 1.95 in L
Series      :      AG
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      1/2 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      1/2 in
Connection 2      :      1/2 in BSPP
Connection Type 2      :      BSPP
  • Machined components are manufactured using solid bar stock
  • Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
  • Steel componentry is plated using RoHS compliant trivalent chrome
  • Steel nipples are hardened to provide heavy-duty performance and resist brinelling
  • Pioneer agricultural interchange
  • Parker/Pioneer 4000 Series, Faster NS/NV Series
  • Safeway Series-S20, Stucchi® IR-Series

Applications: For agricultural applications
