Dixon® CM4F4-B

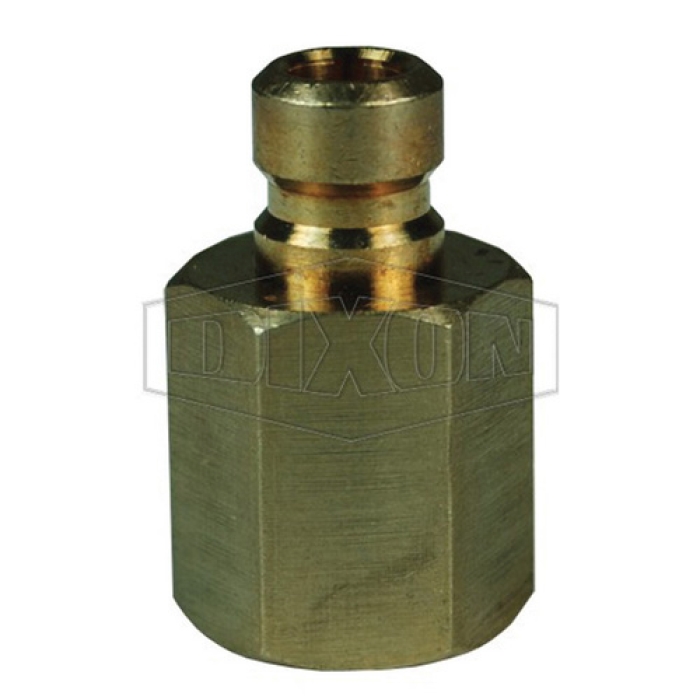

Dixon® CM Series Brass Industrial Mold Interchange Plug, 1/2 in Quick Disconnect x 1/2 in FNPTF

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN CM4F4-B
  • MPN: CM4F4-B
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Industrial Mold Interchange Plug, CM Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1/2 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 1 in, 300 psi, Brass, Dimensions: 1.16 in OD x 1.69 in L, -90 to 400 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Plug
Gender 2      :      Female
Connection Size 2      :      1/2 in
Thread Size 2      :      1/2-14
Hex Size      :      1 in
Pressure Rating      :      300 psi
Material      :      Brass
Dimensions      :      1.16 in OD x 1.69 in L
Series      :      CM
Temperature Rating      :      -90 to 400 deg F
Connection 1      :      1/2 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      1/2 in
Connection 2      :      1/2 in NPT
Connection Type 2      :      NPTF
  • Machined components are manufactured using solid bar stock
  • Mold coolant interchange
  • Foster Series- FJT, Hansen Flo-Temp, Tomco MC Series, Parker® Moldmate, DME Jiffy-Tite

Safety Notes:

  • Maximum working and burst pressure is based on a coupled set, contact Dixon® for pressure ratings.
