Dixon® 3CMF2-B

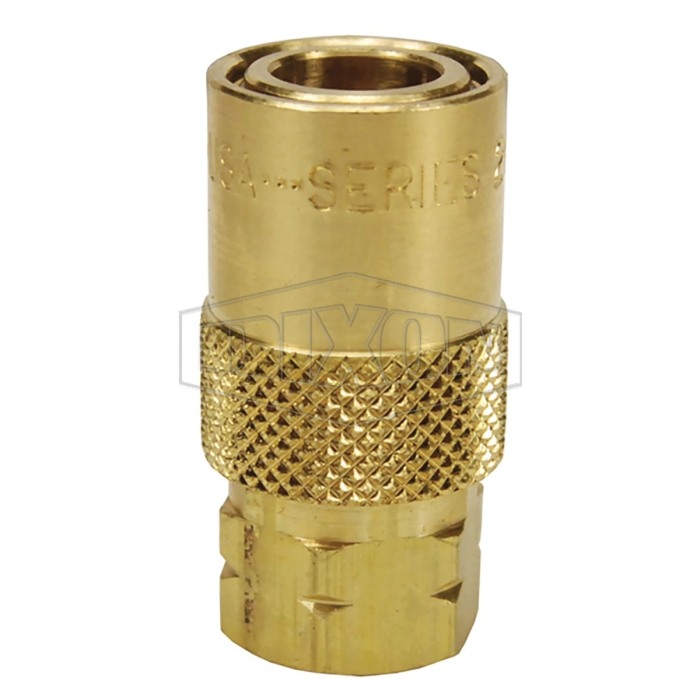

Dixon® CM Series Brass Industrial Mold Interchange Valved Coupler, 3/8 in Quick Disconnect x 1/4 in FNPTF

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 3CMF2-B
  • MPN: 3CMF2-B
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Industrial Mold Interchange Valved Coupler, CM Series, Connection Type 1: Quick Disconnect, Connection Size 1: 3/8 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, Hex Size: 3/4 in, Brass, Dimensions: 0.95 in OD x 1.84 in L, -90 to 400 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Coupler
Gender 2      :      Female
Connection Size 2      :      1/4 in
Thread Size 2      :      1/4-18
Hex Size      :      3/4 in
Material      :      Brass
Dimensions      :      0.95 in OD x 1.84 in L
Series      :      CM
Temperature Rating      :      -90 to 400 deg F
Connection 1      :      3/8 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      3/8 in
Connection 2      :      1/4 in NPT
Connection Type 2      :      NPTF
  • Machined components are manufactured using solid bar stock
  • Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
  • Silicone gaskets and valve O-rings are standard
  • Mold coolant interchange
  • Foster Series- FJT, Hansen Flo-Temp, Tomco MC Series, Parker® Moldmate, DME Jiffy-Tite

Safety Notes:

  • Maximum working and burst pressure is based on a coupled set, contact Dixon® for pressure ratings.
