Dixon® CM2F3

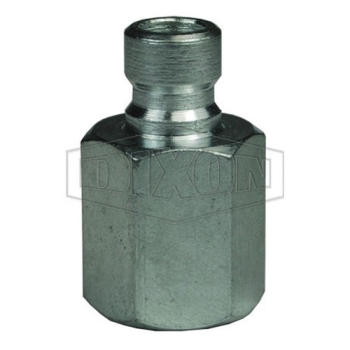

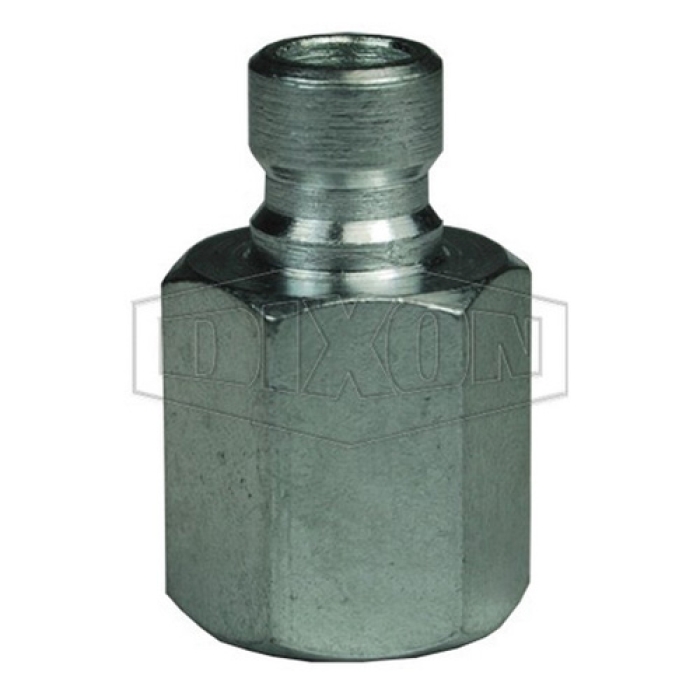

Dixon® CM Series Trivalent Chrome-Plated Steel Industrial Mold Interchange Plug, 1/4 in Quick Disconnect x 3/8 in FNPTF

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN CM2F3
  • MPN: CM2F3
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Industrial Mold Interchange Plug, CM Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1/4 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 3/8 in, Thread Size 2: 3/8-18, Hex Size: 3/4 in, Steel, Finish: Trivalent Chrome-Plated, Dimensions: 0.87 in OD x 1.12 in L, -90 to 400 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Plug
Gender 2      :      Female
Connection Size 2      :      3/8 in
Thread Size 2      :      3/8-18
Hex Size      :      3/4 in
Material      :      Steel
Finish      :      Trivalent Chrome-Plated
Dimensions      :      0.87 in OD x 1.12 in L
Series      :      CM
Temperature Rating      :      -90 to 400 deg F
Connection 1      :      1/4 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      1/4 in
Connection 2      :      3/8 in NPT
Connection Type 2      :      NPTF
  • Machined components are manufactured using solid bar stock
  • Steel componentry is plated using RoHS compliant trivalent chrome
  • Mold coolant interchange
  • Compatible to Foster Series FJT, Hansen Flo-Temp, Tomco MC-series, Parker® Moldmate, DME Jiffy-Tite

Safety Notes:

  • Maximum working and burst pressure is based on a coupled set, contact Dixon® for pressure ratings.
