Dixon® 12EF12-S
Send Print
  1. pin-int

Dixon® 12EF12-S

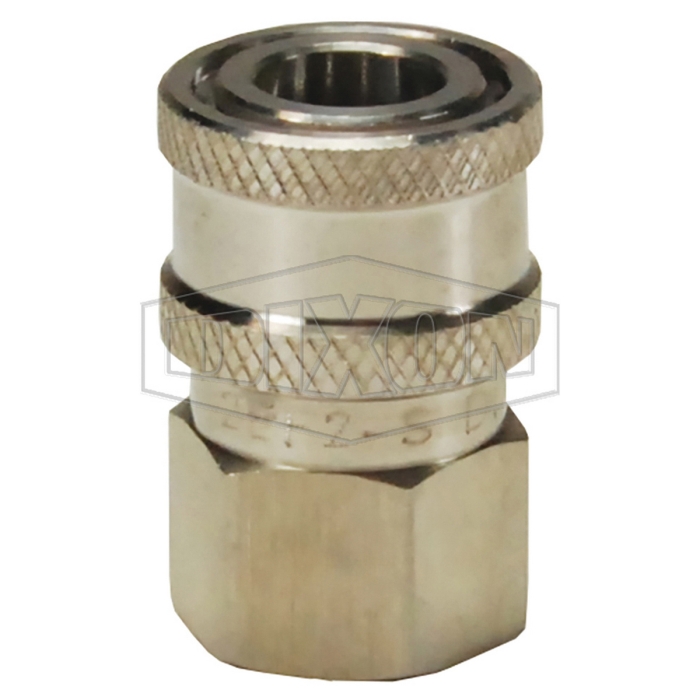

Dixon® E Series 303 Stainless Steel Straight Through Interchange Coupler, 1-1/2 in Quick Disconnect x 1-1/2 in FNPTF

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 12EF12-S
  • MPN: 12EF12-S
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Straight Through Interchange Coupler, E Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1-1/2 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1-1/2 in, Thread Size 2: 1-1/2-11-1/2, Hex Size: 2-3/4 in, 2000 psi, 303 Stainless Steel, Dimensions: 3 in OD x 2.9 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Connection 1      :      1-1/2 in Quick Disconnect
Connection 2      :      1-1/2 in NPT
Connection Size 1      :      1-1/2 in
Connection Size 2      :      1-1/2 in
Hex Size      :      2-3/4 in
Material      :      303 Stainless Steel
Fitting Type      :      Coupler
  • Straight-through pressure-wash interchange
  • Interchanges with Parker® ST Series, Foster FST Series, Tomco Series ST, Hansen ST Series
  • These couplers have no internal valves, providing maximum flow with minimum pressure drop
  • Machined components are manufactured using 303 stainless steel bar stock
  • Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
  • Nitrile (Buna-N) seals are standard

Safety Notes:

  • Do not disconnect with pressure in line.
  • Dixon® cannot assume liability for misapplication of products resulting in equipment down-time, lost production, property damage and/or personal injury including death.
