Dixon® 2EF2-S

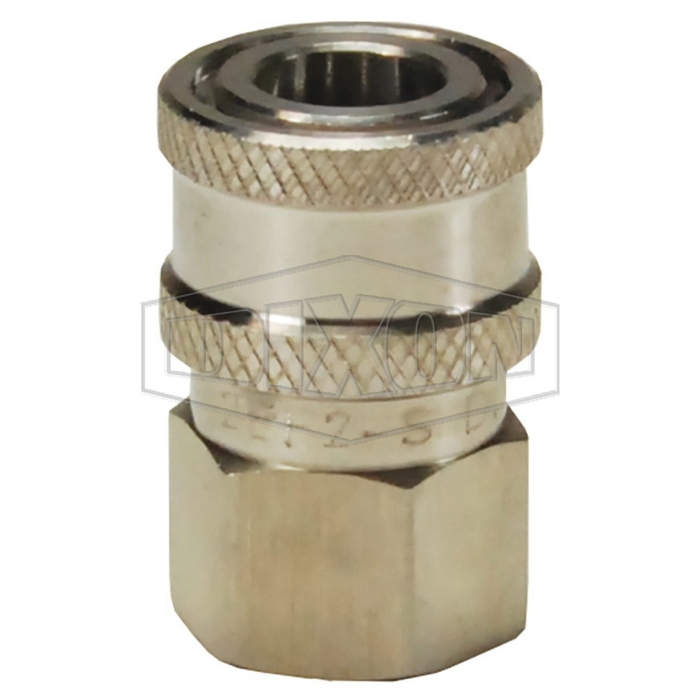

Dixon® E Series 303 Stainless Steel Straight Through Interchange Coupler, 1/4 in Quick Disconnect x 1/4 in FNPTF

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 2EF2-S
  • MPN: 2EF2-S
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Straight Through Interchange Coupler, E Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1/4 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, Hex Size: 13/16 in, 6700 psi, 303 Stainless Steel, Dimensions: 1.46 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Coupler
Material      :      303 Stainless Steel
Connection 1      :      1/4 in Quick Disconnect
Connection 2      :      1/4 in NPT
Connection Size 1      :      1/4 in
Connection Size 2      :      1/4 in
Dimensions      :      1.46 in L
Hex Size      :      13/16 in
  • Straight-through pressure-wash interchange
  • Interchanges with Parker® ST Series, Foster FST Series, Tomco Series ST, Hansen ST Series
  • These couplers have no internal valves, providing maximum flow with minimum pressure drop
  • Machined components are manufactured using 303 stainless steel bar stock
  • Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
  • Nitrile (Buna-N) seals are standard

Safety Notes:

  • Do not disconnect with pressure in line.
  • Dixon® cannot assume liability for misapplication of products resulting in equipment down-time, lost production, property damage and/or personal injury including death.
