DIXON 4EM4-S-LS
Send Print
  1. pin-int

DIXON 4EM4-S-LS

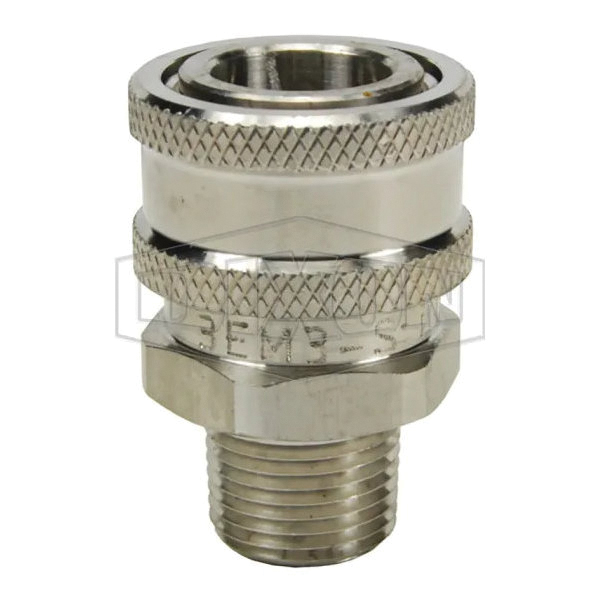

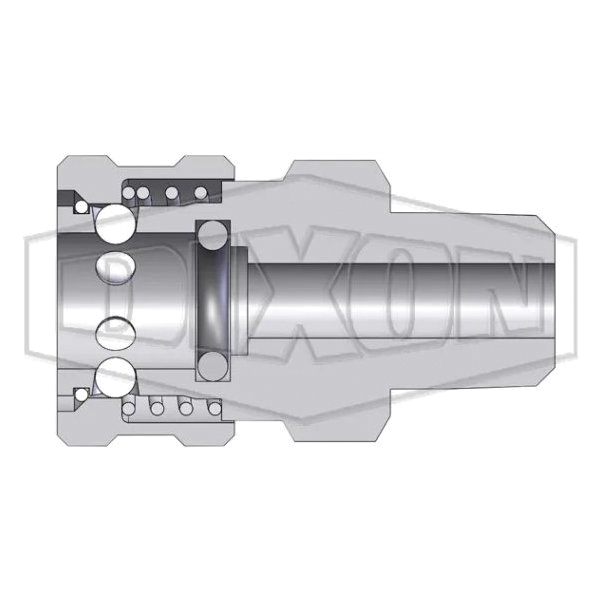

DIXON E-Series 4EM4-S-LS Straight Through Interchange Coupler, 1/2 in x 1/2 in, Quick-Disconnect x MNPTF, 3300 psi

  • Manufacturers: Dixon Valve & Coupling Company, LLC
  • Brand Name: DIXON
  • Tipco Part No: DXN 4EM4-S-LS
  • MPN: 4EM4-S-LS
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

DIXON Straight Through Interchange Coupler, Gender 2: Male, Connection Size 2: 1/2 in, 1-1/8 in Hex, 3300 psi, Stainless Steel, 2 in L, E-Series, -40 to 250 deg F, Connection Type 1: Quick-Disconnect, Connection Size 1: 1/2 in, Thread Size 1: 1/2-14, Connection Type 2: MNPTF

Fitting Type      :      Coupler
Gender 2      :      Male
Connection Size 2      :      1/2 in
Hex Size      :      1-1/8 in
Pressure Rating      :      3300 psi
Material      :      Stainless Steel
Dimensions      :      2 in L
Series      :      E-Series
Temperature Rating      :      -40 to 250 deg F
Connection Type 1      :      Quick-Disconnect
Connection Size 1      :      1/2 in
Thread Size 1      :      1/2-14
Connection Type 2      :      MNPTF
