410-356-0003
.png)

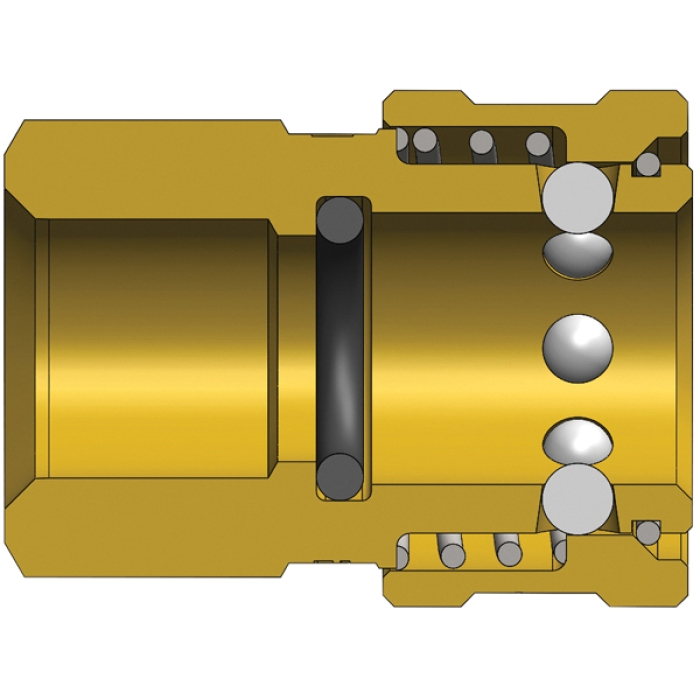

Dixon® Straight Through Interchange Coupler, Series: E, Connection Type 1: Quick Disconnect, Connection Size 1: 1/4 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, Hex Size: 13/16 in, 5200 psi, Brass, Dimensions: 1.46 in L, -40 to 250 deg F
California residents see Prop 65 WARNINGS
| Fitting Type | : | Coupler |
| Material | : | Brass |
| Connection 1 | : | 1/4 in Quick Disconnect |
| Connection 2 | : | 1/4 in NPT |
| Connection Size 1 | : | 1/4 in |
| Connection Size 2 | : | 1/4 in |
| Dimensions | : | 1.46 in L |
| Hex Size | : | 13/16 in |
- Straight-through pressure-wash interchange
- Interchanges with Parker ST Series, Foster FST Series, Tomco Series ST, Hansen ST Series
- These couplers have no internal valves, providing maximum flow with minimum pressure drop
- Machined components are manufactured using solid brass
- Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
- Nitrile (Buna-N) seals are standard
- Steel sleeves are standard to maximize service life, hardened to resist deformation
Standards/Certifications: Prop65 Warning: This product contains lead and other chemicals which are known to the state of California to cause cancer and birth defects or other reproductive harm @www.P65Warnings.ca.gov
Safety Notes: Do not disconnect with pressure in line.
