Dixon® E2M2-B
Send Print
  1. pin-int

Dixon® E2M2-B

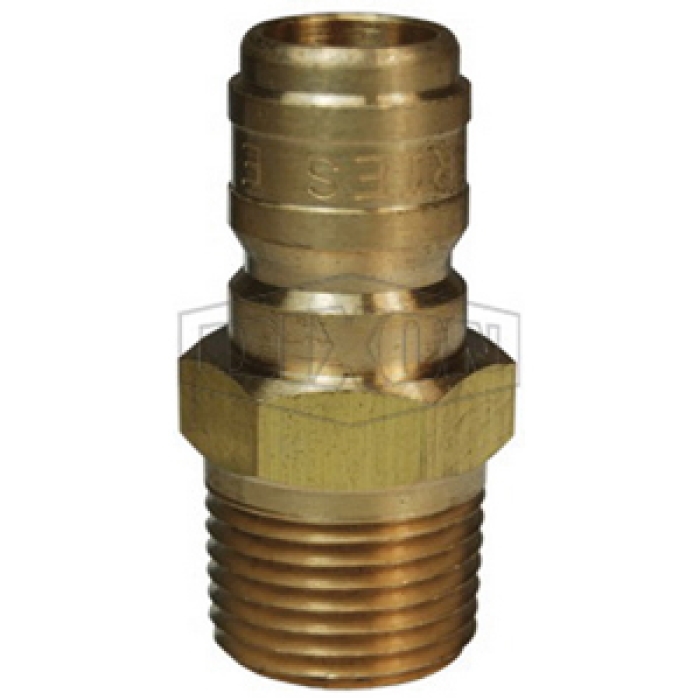

Dixon® E Series Brass Straight Through Interchange Plug, 1/4 in Quick Disconnect x 1/4 in MNPTF

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN E2M2-B
  • MPN: E2M2-B
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Straight Through Interchange Plug, E Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1/4 in, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, Hex Size: 9/16 in, 5200 psi, Brass, Dimensions: 0.65 in OD x 1.50 in L

California residents see Prop 65 WARNINGS

Fitting Type      :      Plug
Material      :      Brass
Connection 1      :      1/4 in Quick Disconnect
Connection 2      :      1/4 in NPT
Connection Size 1      :      1/4 in
Connection Size 2      :      1/4 in
Dimensions      :      0.65 in OD x 1.50 in L
Hex Size      :      9/16 in
  • Straight-through pressure-wash interchange
  • Interchanges with Parker® ST Series, Foster FST Series, Tomco Series ST, Hansen ST Series
  • These plugs have no internal valves, providing maximum flow with minimum pressure drop

Safety Notes:

  • Do not disconnect with pressure in line.
  • Dixon® cannot assume liability for misapplication of products resulting in equipment down-time, lost production, property damage and/or personal injury including death.
