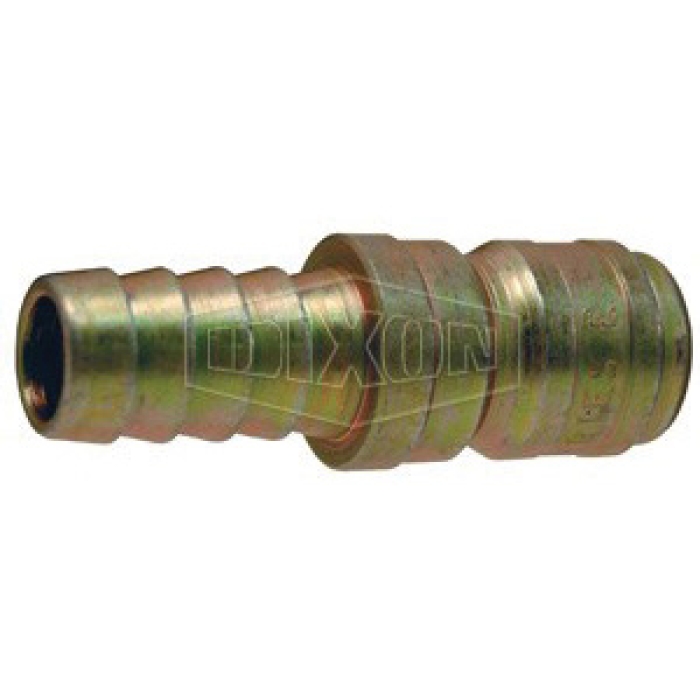

Dixon® Straight Through Interchange Plug, E Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1/2 in, Connection Type 2: Hose Barb, Connection Size 2: 1/2 in, 2700 psi, Steel, Finish: Trivalent Chrome-Plated, Dimensions: 0.75 in OD x 3.41 in L
California residents see Prop 65 WARNINGS
| Fitting Type | : | Plug |
| Connection Size 2 | : | 1/2 in |
| Pressure Rating | : | 2700 psi |
| Material | : | Steel |
| Finish | : | Trivalent Chrome-Plated |
| Dimensions | : | 0.75 in OD x 3.41 in L |
| Series | : | E |
| Connection 1 | : | 1/2 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Connection Size 1 | : | 1/2 in |
| Connection 2 | : | 1/2 in Hose Barb |
| Connection Type 2 | : | Hose Barb |
- Straight-through pressure-wash interchange
- Interchanges with Parker® ST Series, Foster FST Series, Tomco Series ST, Hansen ST Series
- These plugs have no internal valves, providing maximum flow with minimum pressure drop
- Machined components are manufactured using solid steel
- Steel componentry is plated using RoHS compliant trivalent chrome
Safety Notes:
- Do not disconnect with pressure in line.
- Dixon® cannot assume liability for misapplication of products resulting in equipment down-time, lost production, property damage and/or personal injury including death.
- Operating pressures for the standard hose barbs utilizing hose barb end connections may be dramatically reduced to that of the hose rating and hose and end connection combination. Consult hose manufacturer's catalog for hose end connection ratings. If in doubt, test under controlled conditions for suitability to application.
