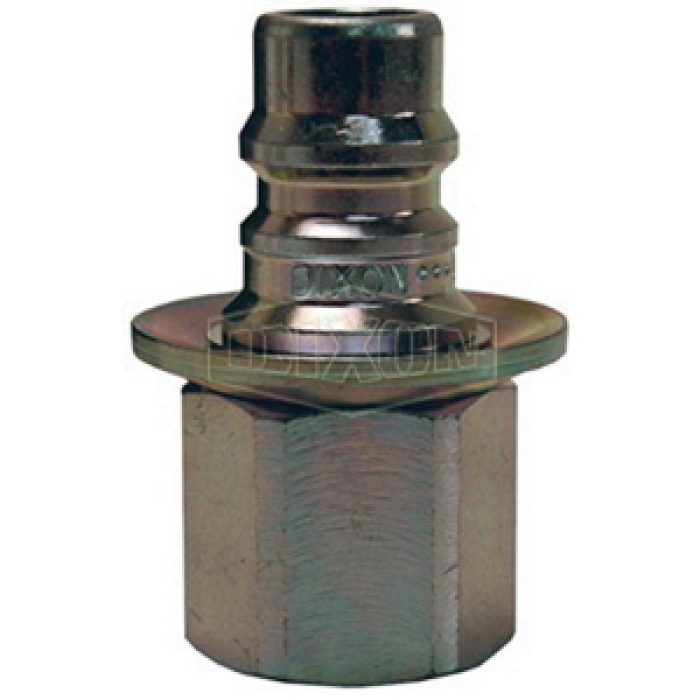

Dixon® Water-Blast Interchange Plug, EA Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1/2 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 1-1/8 in, 10000 psi, Steel, Finish: Trivalent Chrome-Plated, Dimensions: 1.62 in OD x 2.35 in L, -40 to 250 deg F
California residents see Prop 65 WARNINGS
| Fitting Type | : | Plug |
| Gender 2 | : | Female |
| Connection Size 2 | : | 1/2 in |
| Thread Size 2 | : | 1/2-14 |
| Hex Size | : | 1-1/8 in |
| Pressure Rating | : | 10000 psi |
| Material | : | Steel |
| Finish | : | Trivalent Chrome-Plated |
| Dimensions | : | 1.62 in OD x 2.35 in L |
| Series | : | EA |
| Temperature Rating | : | -40 to 250 deg F |
| Connection 1 | : | 1/2 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Connection Size 1 | : | 1/2 in |
| Connection 2 | : | 1/2 in NPT |
| Connection Type 2 | : | NPTF |
- Machined from solid high-strength steel bar stock and hardened
- Steel componentry is plated using RoHS compliant trivalent chrome
- Plug-mounted sleeve guard protects against accidental disconnection
- Smooth bore full flow design ensures maximum flow with minimal pressure drop
- Steel body components maximize service life by resisting the effects of brinneling and internal erosion
- Heavy-duty knurled sleeve with locking pin provides maximum protection against brinneling and accidental disconnection
- Nitrile (Buna-N) seals are standard
- Water-blast Interchange
- Compatible with Parker® Series-WB, Aeroquip®FD69, Snap-Tite 56-Series
