Dixon® D-4HF4-SS-FNS

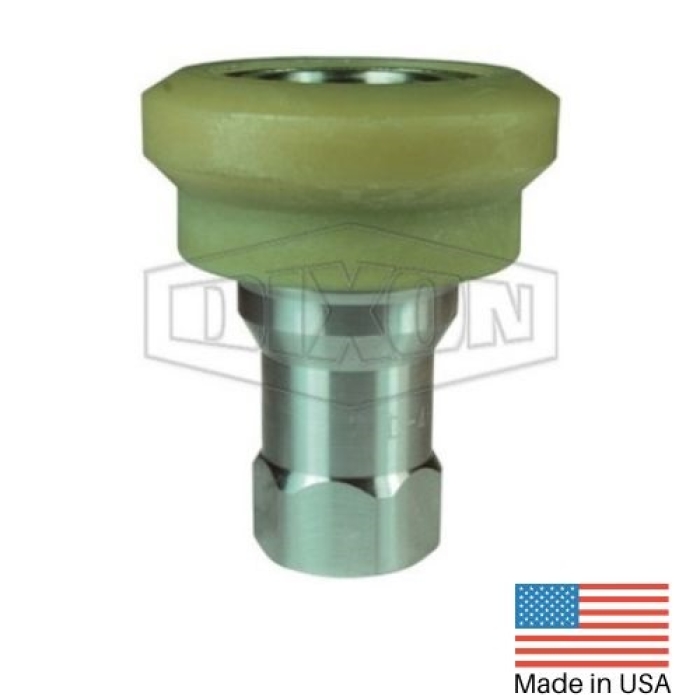

Dixon® H Series 316 Stainless Steel ISO-B Food-Grade Nylon Flanged Interchange Coupler, 1/2 in Quick Disconnect x 1/2 in FNPTF

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN D-4HF4-SS-FNS
  • MPN: D-4HF4-SS-FNS
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® ISO-B Food-Grade Nylon Flanged Interchange Coupler, H Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1/2 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 1-1/16 in, 3500 psi, 316 Stainless Steel, Dimensions: 2.38 in OD x 2.86 in L, Dimension Standards: ISO 7241 Series B, -40 to 400 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Coupler
Gender 2      :      Female
Connection Size 2      :      1/2 in
Thread Size 2      :      1/2-14
Hex Size      :      1-1/16 in
Pressure Rating      :      3500 psi
Material      :      316 Stainless Steel
Dimensions      :      2.38 in OD x 2.86 in L
Dimension Standards      :      ISO 7241 Series B
Series      :      H
Temperature Rating      :      -40 to 400 deg F
Connection 1      :      1/2 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      1/2 in
Connection 2      :      1/2 in NPT
Connection Type 2      :      NPTF
  • Poppet style shut-off valves
  • Designed to prevent fluid loss when disconnected
  • Machined components are manufactured using solid bar stock
  • Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
  • Nylon flanged sleeve
  • FDA FKM seals are standard
  • Redundant O-ring sealing system with PTFE back-up ring
  • Valve seals are crimped in place to maintain integrity during excessive flow conditions and pressurized connection
  • Interchangeable with Parker-Hannifin 60 Series, Snap-Tite 72 Series, Hansen HK Series, Faster Series 'HNV', Aeroquip/Eaton FD45, Stucchi® Series IRB/IRBO/IRBX
