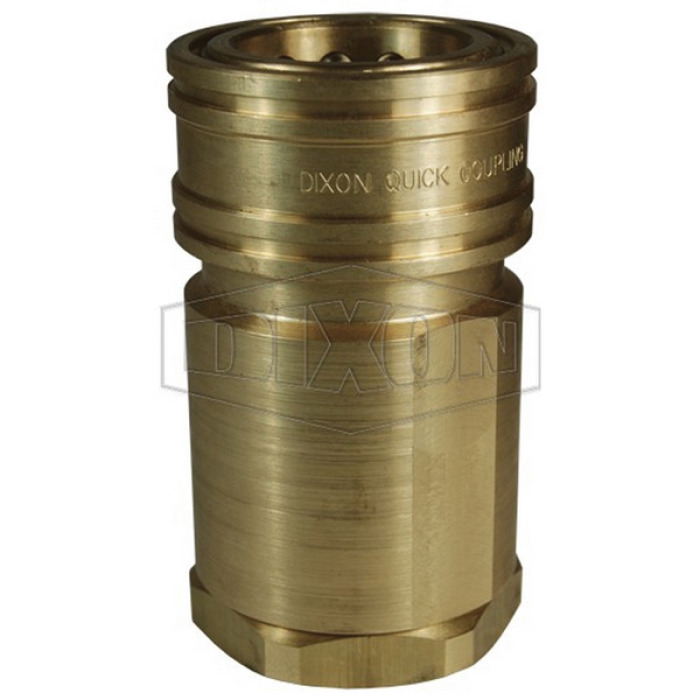

Dixon® ISO-B High-Volume Interchange Coupler, H Series, Connection Type 1: Quick Disconnect, Connection Size 1: 2-1/2 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 2 in, Thread Size 2: 2-11-1/2, Hex Size: 3-3/4 in, 700 psi, Brass, Dimensions: 4.1 in OD x 5.57 in L, Dimension Standards: ISO 7241 Series B, -40 to 250 deg F
California residents see Prop 65 WARNINGS
| Fitting Type | : | Coupler |
| Gender 2 | : | Female |
| Connection Size 2 | : | 2 in |
| Thread Size 2 | : | 2-11-1/2 |
| Hex Size | : | 3-3/4 in |
| Pressure Rating | : | 700 psi |
| Material | : | Brass |
| Dimensions | : | 4.1 in OD x 5.57 in L |
| Dimension Standards | : | ISO 7241 Series B |
| Series | : | H |
| Temperature Rating | : | -40 to 250 deg F |
| Connection 1 | : | 2-1/2 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Connection Size 1 | : | 2-1/2 in |
| Connection 2 | : | 2 in NPT |
| Connection Type 2 | : | NPTF |
- Poppet style shut-off valves
- Designed to prevent fluid loss when disconnected
- Machined components are manufactured using solid bar stock
- Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
- Steel componentry is plated using RoHS compliant trivalent chrome
- Steel coupler sleeves are hardened to resist deformation and maximize service life
- Nitrile (Buna-N) seals are standard
- Redundant O-ring sealing system with Hytrel back-up ring
- Interchangeable with Parker-Hannifin 60 Series, Snap-Tite 72 Series, Hansen HK Series, Faster HNV Series, Aeroquip/Eaton FD45, Stucchi® Series IRB/IRBO/IRBX
