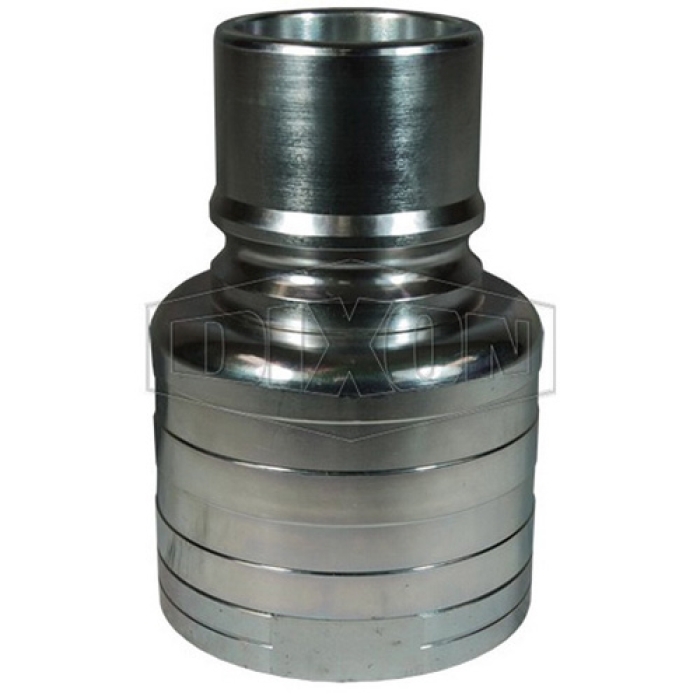

Dixon® ISO-B High-Volume Interchange Plug, H Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1-1/2 in, Connection Type 2: BSPP, Gender 2: Female, Connection Size 2: 1-1/2 in, Thread Size 2: 1-1/2-11, Hex Size: 2-5/8 in, 2500 psi, Steel, Finish: Trivalent Chrome-Plated, Dimensions: 2.88 in OD x 4.76 in L, Dimension Standards: ISO 7241 Series B, -40 to 250 deg F
California residents see Prop 65 WARNINGS
| Fitting Type | : | Plug |
| Gender 2 | : | Female |
| Connection Size 2 | : | 1-1/2 in |
| Thread Size 2 | : | 1-1/2-11 |
| Hex Size | : | 2-5/8 in |
| Pressure Rating | : | 2500 psi |
| Material | : | Steel |
| Finish | : | Trivalent Chrome-Plated |
| Dimensions | : | 2.88 in OD x 4.76 in L |
| Dimension Standards | : | ISO 7241 Series B |
| Series | : | H |
| Temperature Rating | : | -40 to 250 deg F |
| Connection 1 | : | 1-1/2 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Connection Size 1 | : | 1-1/2 in |
| Connection 2 | : | 1-1/2 in BSPP |
| Connection Type 2 | : | BSPP |
- Poppet style shut-off valves
- Designed to prevent fluid loss when disconnected
- Machined components are manufactured using solid bar stock
- Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
- Steel componentry is plated using RoHS compliant trivalent chrome
- Steel nipples are hardened to provide heavy-duty performance and resist brinelling
- Interchangeable with Parker-Hannifin 60 Series, Snap-Tite 72 Series, Hansen HK Series, Faster HNV Series, Aeroquip/Eaton FD45, Stucchi® Series IRB/IRBO/IRBX
