Dixon® H20F20

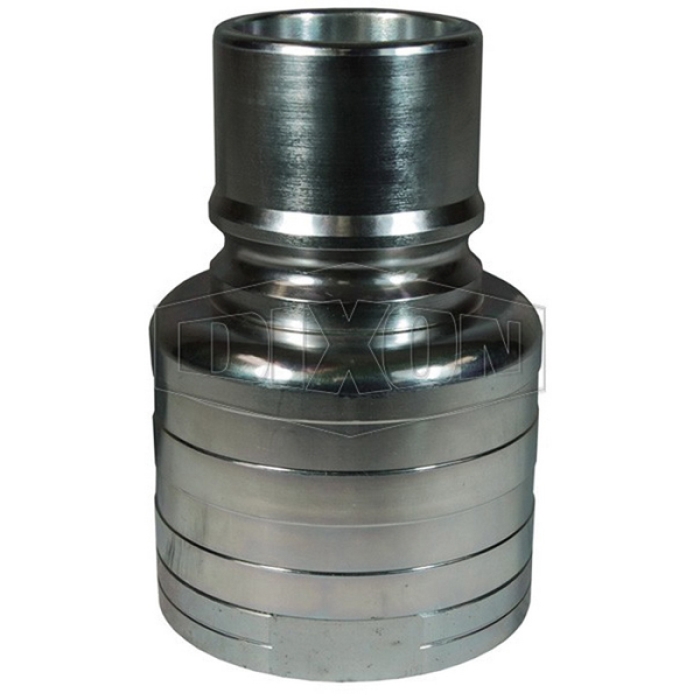

Dixon® H Series Trivalent Chrome-Plated Steel ISO-B High-Volume Interchange Plug, 2-1/2 in Quick Disconnect x 2-1/2 in FNPTF

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN H20F20
  • MPN: H20F20
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® ISO-B High-Volume Interchange Plug, H Series, Connection Type 1: Quick Disconnect, Connection Size 1: 2-1/2 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 2-1/2 in, Thread Size 2: 2-1/2-8, Hex Size: 3-3/4 in, 1500 psi, Steel, Finish: Trivalent Chrome-Plated, Dimensions: 4.1 in OD x 5.95 in L, Dimension Standards: ISO 7241 Series B, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Plug
Gender 2      :      Female
Connection Size 2      :      2-1/2 in
Thread Size 2      :      2-1/2-8
Hex Size      :      3-3/4 in
Pressure Rating      :      1500 psi
Material      :      Steel
Finish      :      Trivalent Chrome-Plated
Dimensions      :      4.1 in OD x 5.95 in L
Dimension Standards      :      ISO 7241 Series B
Series      :      H
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      2-1/2 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      2-1/2 in
Connection 2      :      2-1/2 in NPT
Connection Type 2      :      NPTF
  • Poppet style shut-off valves
  • Designed to prevent fluid loss when disconnected
  • Machined components are manufactured using solid bar stock
  • Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
  • Steel componentry is plated using RoHS compliant trivalent chrome
  • Steel nipples are hardened to provide heavy-duty performance and resist brinelling
  • Interchangeable with Parker-Hannifin 60 Series, Snap-Tite 72 Series, Hansen HK Series, Faster HNV Series, Aeroquip/Eaton FD45, Stucchi® Series IRB/IRBO/IRBX
