Dixon® HS6F6-S

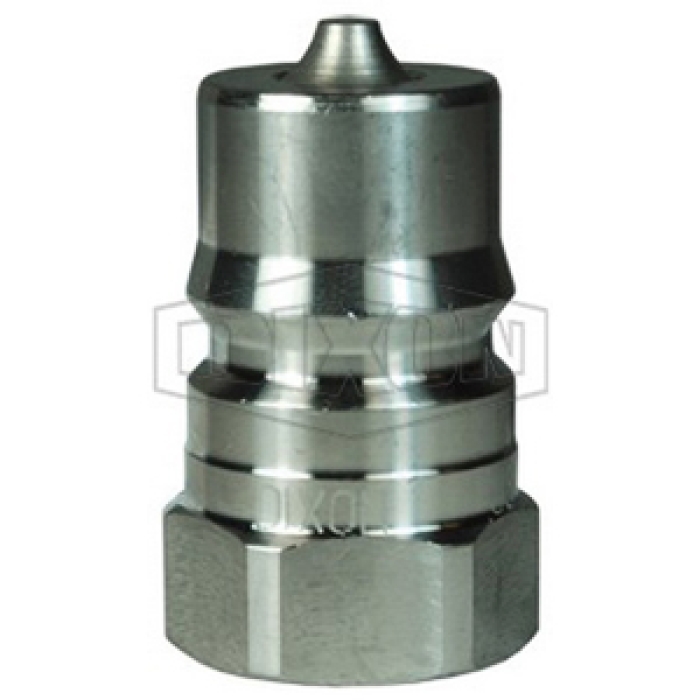

Dixon® HS Series 303 Stainless Steel ISO-B Steam Interchange Plug, 3/4 in Quick Disconnect x 3/4 in FNPTF

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN HS6F6-S
  • MPN: HS6F6-S
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® ISO-B Steam Interchange Plug, HS Series, Connection Type 1: Quick Disconnect, Connection Size 1: 3/4 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 3/4 in, Thread Size 2: 3/4-14, Hex Size: 1-5/16 in, 200 psi, 303 Stainless Steel, Dimensions: 1.44 in OD x 2.43 in L, -70 to 400 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Plug
Gender 2      :      Female
Connection Size 2      :      3/4 in
Thread Size 2      :      3/4-14
Hex Size      :      1-5/16 in
Pressure Rating      :      200 psi
Material      :      303 Stainless Steel
Dimensions      :      1.44 in OD x 2.43 in L
Series      :      HS
Temperature Rating      :      -70 to 400 deg F
Connection 1      :      3/4 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      3/4 in
Connection 2      :      3/4 in NPT
Connection Type 2      :      NPTF
  • Machined components are manufactured using solid bar stock
  • Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
  • Special high-temperature EPDM O-rings designed for steam service
  • Interchangeable to ISO7241 Series B
  • Parker® 60 Series Steam Couplings

Applications: Designed exclusively for steam applications

Safety Notes:

  • Maximum working pressure has been calculated using standard saturated steam at 194 deg C for general-purpose continuous service.
  • For advanced operating pressure or super heated steam applications, contact Dixon® for further information.
  • Do not disconnect under pressure.
