Dixon® 6HSF6-B

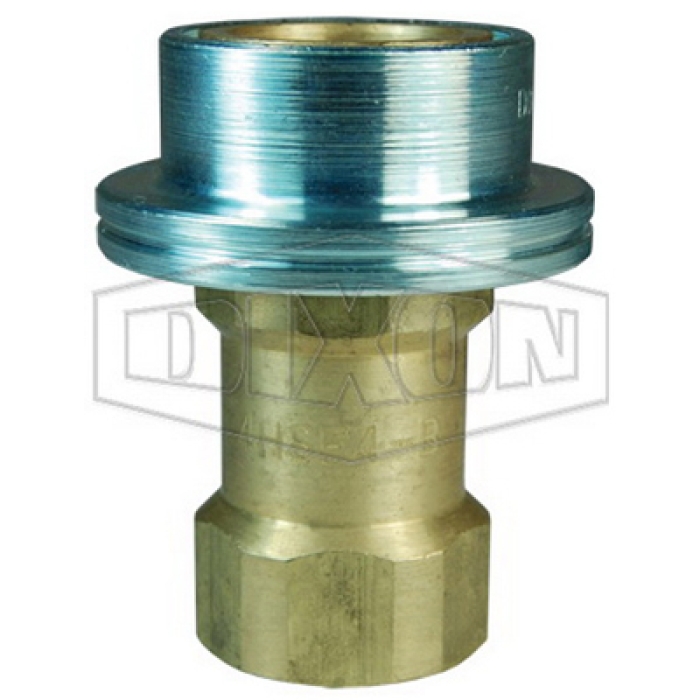

Dixon® HS Series Brass ISO-B Steam Interchange Coupler, 3/4 in Quick Disconnect x 3/4 in FNPTF

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 6HSF6-B
  • MPN: 6HSF6-B
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® ISO-B Steam Interchange Coupler, HS Series, Connection Type 1: Quick Disconnect, Connection Size 1: 3/4 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 3/4 in, Thread Size 2: 3/4-14, Hex Size: 1-5/16 in, Brass, Dimensions: 2.48 in OD x 3.55 in L, -70 to 400 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Coupler
Gender 2      :      Female
Connection Size 2      :      3/4 in
Thread Size 2      :      3/4-14
Hex Size      :      1-5/16 in
Material      :      Brass
Dimensions      :      2.48 in OD x 3.55 in L
Series      :      HS
Temperature Rating      :      -70 to 400 deg F
Connection 1      :      3/4 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      3/4 in
Connection 2      :      3/4 in NPT
Connection Type 2      :      NPTF
  • Machined components are manufactured using solid bar stock
  • Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
  • Coupler has a large-plated steel sleeve designed for easy gripping with gloves
  • Steel componentry is plated using RoHS compliant trivalent chrome
  • EPDM steam-grade seals are standard
  • Couplers have a redundant O-ring sealing system (dual O-rings with PTFE back-up)
  • Valve seals are crimped in place to maintain integrity during excessive flow conditions
  • Special high-temperature EPDM O-rings designed for steam service
  • Interchangeable to ISO 7241 Series B
  • Parker® 60 Series Steam Couplings

Applications: For steam applications

Safety Notes:

  • Maximum working pressure has been calculated using standard saturated steam at 194 deg C for general-purpose continuous service.
  • For advanced operating pressure or super heated steam applications, contact Dixon® for further information.
  • Do not disconnect under pressure.
