Dixon® K3BF3-SS

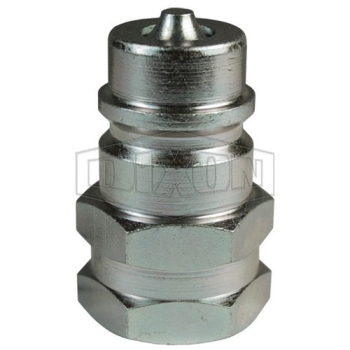

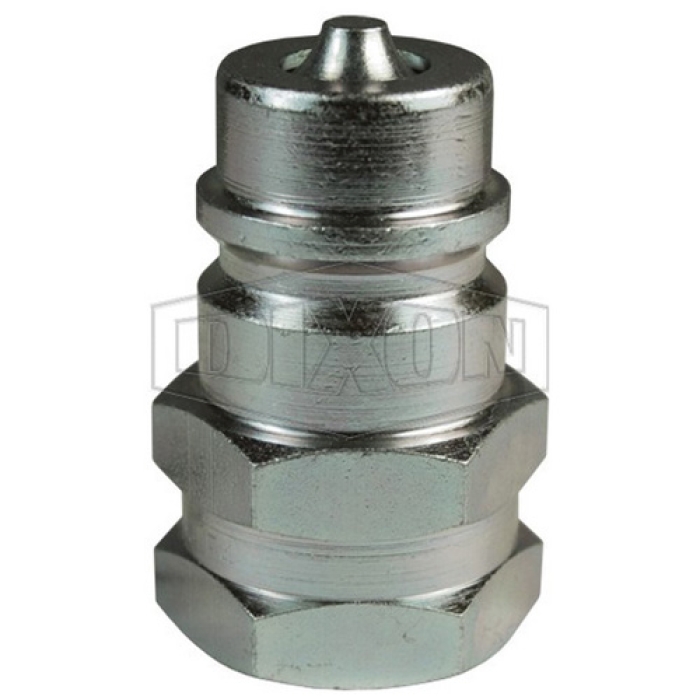

Dixon® K Series 316 Stainless Steel ISO-A Interchange Plug, 3/8 in Quick Disconnect x 3/8 in Female BSPP

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN K3BF3-SS
  • MPN: K3BF3-SS
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® ISO-A Interchange Plug, K Series, Connection Type 1: Quick Disconnect, Connection Size 1: 3/8 in, Connection Type 2: BSPP, Gender 2: Female, Connection Size 2: 3/8 in, Thread Size 2: 3/8-19, Hex Size: 7/8 in, 316 Stainless Steel, Dimensions: 0.97 in OD x 1.7 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Plug
Gender 2      :      Female
Connection Size 2      :      3/8 in
Thread Size 2      :      3/8-19
Hex Size      :      7/8 in
Material      :      316 Stainless Steel
Dimensions      :      0.97 in OD x 1.7 in L
Series      :      K
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      3/8 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      3/8 in
Connection 2      :      3/8 in BSPP
Connection Type 2      :      BSPP
  • Poppet style shut-off valves
  • Machined components are manufactured using solid bar stock
  • Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
  • Steel componentry is plated using RoHS compliant trivalent chrome
  • Interchangeable to ISO7241 Series A
  • Parker® 6600 Series, Aeroquip/Eaton FD56 (5600)
  • Faster ANV, Hansen HA 15000, Safeway S56 Series
