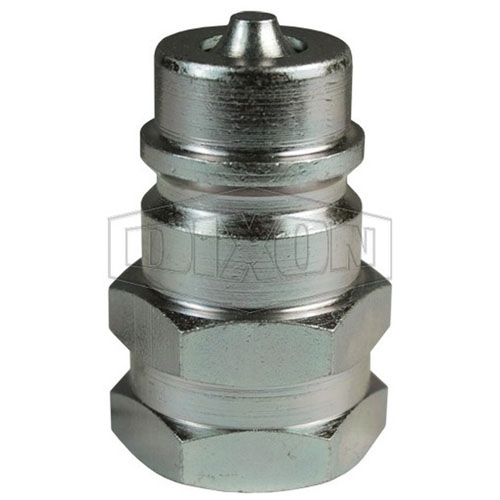

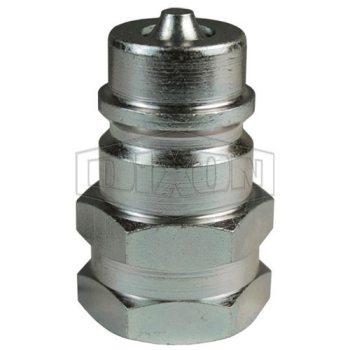

Dixon® ISO-A Interchange Plug, K Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1 in, Thread Size 2: 1-11-1/2, Hex Size: 1-5/8 in, 4000 psi, Steel, Finish: Trivalent Chrome-Plated, Dimensions: 1.79 in OD x 2.87 in L, -40 to 250 deg F
California residents see Prop 65 WARNINGS
| Fitting Type | : | Plug |
| Gender 2 | : | Female |
| Connection Size 2 | : | 1 in |
| Thread Size 2 | : | 1-11-1/2 |
| Hex Size | : | 1-5/8 in |
| Pressure Rating | : | 4000 psi |
| Material | : | Steel |
| Finish | : | Trivalent Chrome-Plated |
| Dimensions | : | 1.79 in OD x 2.87 in L |
| Series | : | K |
| Temperature Rating | : | -40 to 250 deg F |
| Connection 1 | : | 1 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Connection Size 1 | : | 1 in |
| Connection 2 | : | 1 in NPT |
| Connection Type 2 | : | NPTF |
- Poppet style shut-off valves
- Machined components are manufactured using solid bar stock
- Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
- Steel componentry is plated using RoHS compliant trivalent chrome
- Steel nipples are hardened to provide heavy-duty performance and resist brinelling
- Interchangeable to ISO7241 Series A
- Parker® 6600 Series, Aeroquip/Eaton FD56 (5600)
- Faster ANV, Hansen HA 15000, Safeway S56 Series
