Dixon® K16F16
Send Print
  1. pin-int

Dixon® K16F16

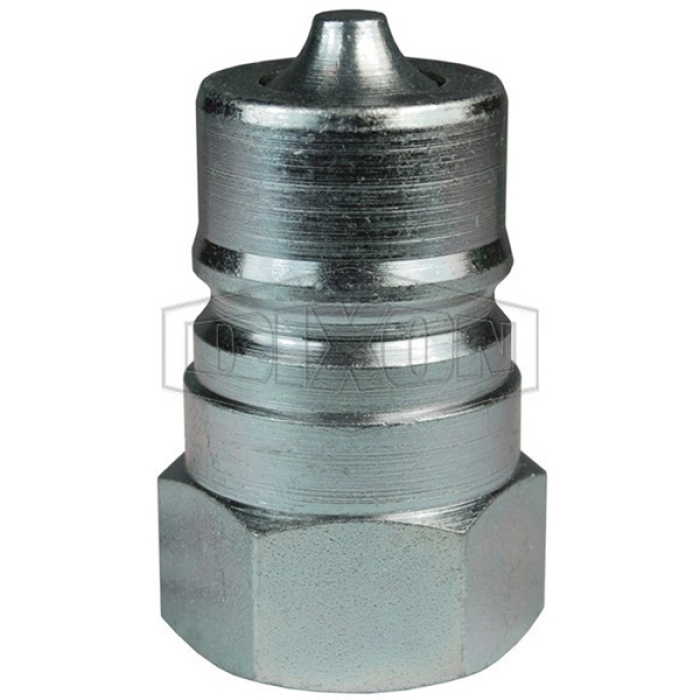

Dixon® K Series Trivalent Chrome-Plated Steel ISO-A Interchange Plug, 2 in Quick Disconnect x 2 in FNPTF

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN K16F16
  • MPN: K16F16
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® ISO-A Interchange Plug, K Series, Connection Type 1: Quick Disconnect, Connection Size 1: 2 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 2 in, Thread Size 2: 2-11-1/2, Hex Size: 3 in, 1450 psi, Steel, Finish: Trivalent Chrome-Plated, Dimensions: 3.46 in OD x 4.13 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Plug
Gender 2      :      Female
Connection Size 2      :      2 in
Thread Size 2      :      2-11-1/2
Hex Size      :      3 in
Pressure Rating      :      1450 psi
Material      :      Steel
Finish      :      Trivalent Chrome-Plated
Dimensions      :      3.46 in OD x 4.13 in L
Series      :      K
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      2 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      2 in
Connection 2      :      2 in NPT
Connection Type 2      :      NPTF
  • Poppet style shut-off valves
  • Machined components are manufactured using solid bar stock
  • Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
  • Steel componentry is plated using RoHS compliant trivalent chrome
  • Steel nipples are hardened to provide heavy-duty performance and resist brinelling
  • Interchangeable to ISO7241 Series A
  • Parker® 6600 Series, Aeroquip/Eaton FD56 (5600)
  • Faster ANV, Hansen HA 15000, Safeway S56 Series
