Dixon® K6OF6
Send Print
  1. pin-int

Dixon® K6OF6

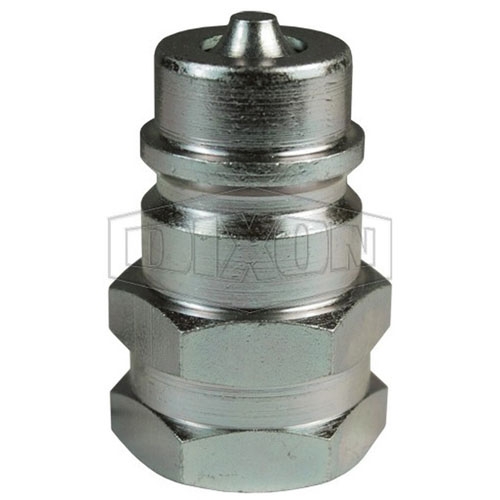

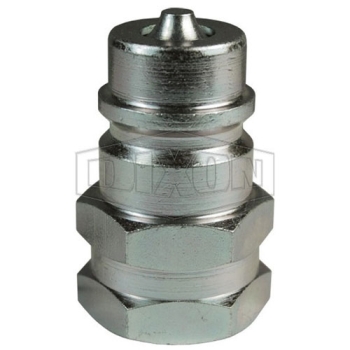

Dixon® K Series Trivalent Chrome-Plated Steel ISO-A Interchange Plug, 3/4 in Quick Disconnect x 1-1/16 in Female ORB

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN K6OF6
  • MPN: K6OF6
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® ISO-A Interchange Plug, K Series, Connection Type 1: Quick Disconnect, Connection Size 1: 3/4 in, Connection Type 2: ORB, Gender 2: Female, Connection Size 2: 1-1/16 in, Thread Size 2: 1-1/16-12, Hex Size: 1-5/16 in, 4000 psi, Steel, Finish: Trivalent Chrome-Plated, Dimensions: 1.44 in OD x 2.43 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Plug
Gender 2      :      Female
Connection Size 2      :      1-1/16 in
Thread Size 2      :      1-1/16-12
Hex Size      :      1-5/16 in
Pressure Rating      :      4000 psi
Material      :      Steel
Finish      :      Trivalent Chrome-Plated
Dimensions      :      1.44 in OD x 2.43 in L
Series      :      K
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      3/4 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      3/4 in
Connection 2      :      1-1/16 in ORB
Connection Type 2      :      ORB
  • Poppet style shut-off valves
  • Machined components are manufactured using solid bar stock
  • Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
  • Steel componentry is plated using RoHS compliant trivalent chrome
  • Steel nipples are hardened to provide heavy-duty performance and resist brinelling
  • Interchangeable to ISO7241 Series A
  • Parker® 6600 Series, Aeroquip/Eaton FD56 (5600)
  • Faster ANV, Hansen HA 15000, Safeway S56 Series
