Dixon® PD1F2

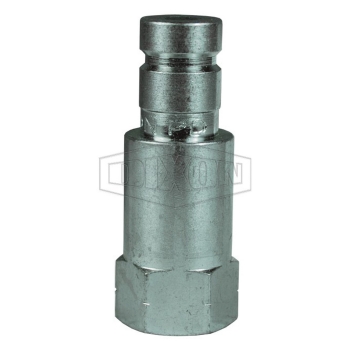

Dixon® PD Series Trivalent Chrome-Plated Steel Diagnostic Plug, 1/8 in Quick Disconnect x 1/4 in FNPT

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN PD1F2
  • MPN: PD1F2
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Diagnostic Plug, PD Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1/8 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, Hex Size: 12 mm, 6000 psi, Steel, Finish: Trivalent Chrome-Plated, Dimensions: 0.76 in Dia x 1.88 in L, -40 to 250 deg F, For Use With: PD Series Quick Disconnect Diagnostic Interchange Hydraulic Couplings

California residents see Prop 65 WARNINGS

Fitting Type      :      Plug
Gender 2      :      Female
Connection Size 2      :      1/4 in
Thread Size 2      :      1/4-18
Hex Size      :      12 mm
Pressure Rating      :      6000 psi
Material      :      Steel
Finish      :      Trivalent Chrome-Plated
Dimensions      :      0.76 in Dia x 1.88 in L
Series      :      PD
Temperature Rating      :      -40 to 250 deg F
For Use With      :      PD Series Quick Disconnect Diagnostic Interchange Hydraulic Couplings
Connection 1      :      1/8 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      1/8 in
Connection 2      :      1/4 in NPT
Connection Type 2      :      NPT
  • Machined components are manufactured using solid bar stock
  • Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
  • Steel componentry is plated using RoHS compliant trivalent chrome
  • Steel nipples are hardened to provide heavy-duty performance and resist brinelling
  • Interchangeable to ISO 15171-1
  • Parker® PD Series, Aeroquip®FD90
