Dixon® T3F3-SS DXN T3F3-SS | Tipco Technologies
Dixon® T3F3-SS
Send Print
  1. pin-int

Dixon® T3F3-SS

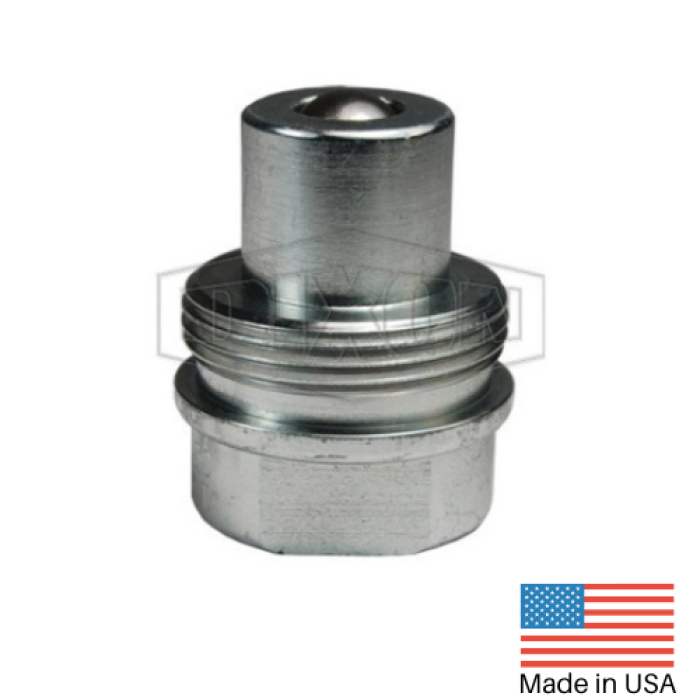

Dixon® T Series 316 Stainless Steel 10K Ball Plug, 3/8 in Quick Disconnect x 3/8 in FNPTF

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN T3F3-SS
  • MPN: T3F3-SS
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® 10K Ball Plug, T Series, Connection Type 1: Quick Disconnect, Connection Size 1: 3/8 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 3/8 in, Thread Size 2: 3/8-18, Hex Size: 1-1/4 in, 10000 psi, 316 Stainless Steel, Dimensions: 1.35 in OD x 1.56 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Plug
Gender 2      :      Female
Connection Size 2      :      3/8 in
Thread Size 2      :      3/8-18
Hex Size      :      1-1/4 in
Pressure Rating      :      10000 psi
Material      :      316 Stainless Steel
Dimensions      :      1.35 in OD x 1.56 in L
Series      :      T
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      3/8 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      3/8 in
Connection 2      :      3/8 in NPT
Connection Type 2      :      NPTF
  • Machined components are manufactured using solid bar stock
  • High pressure screw together Interchange, Parker® 3000 Series, Enerpac C604, Interchangeable to ISO 14540
  • Steel componentry is plated using RoHS compliant trivalent chrome
  • Polyurethane seals

Applications: Designed for high-pressure applications including hydraulic rams and pumps where low flow and pressures up to 10000 psi are encountered
