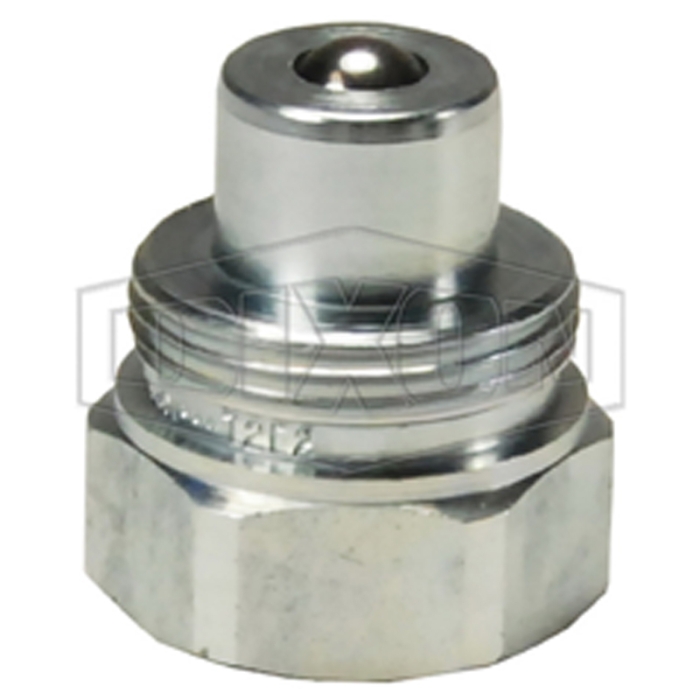

Dixon® High-Pressure Ball Plug, T Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1/4 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/4 in, Thread Size 2: 1/4-18, Hex Size: 1-1/16 in, 10000 psi, Steel, Finish: Trivalent Chrome-Plated, Dimensions: 1.07 in OD x 1.29 in L, -40 to 250 deg F, For Use With: T-Series Quick Disconnect Hydraulic Coupling
California residents see Prop 65 WARNINGS
| Fitting Type | : | Plug |
| Gender 2 | : | Female |
| Connection Size 2 | : | 1/4 in |
| Thread Size 2 | : | 1/4-18 |
| Hex Size | : | 1-1/16 in |
| Pressure Rating | : | 10000 psi |
| Material | : | Steel |
| Finish | : | Trivalent Chrome-Plated |
| Dimensions | : | 1.07 in OD x 1.29 in L |
| Series | : | T |
| Temperature Rating | : | -40 to 250 deg F |
| For Use With | : | T-Series Quick Disconnect Hydraulic Coupling |
| Connection 1 | : | 1/4 in Quick Disconnect |
| Connection Type 1 | : | Quick Disconnect |
| Connection Size 1 | : | 1/4 in |
| Connection 2 | : | 1/4 in NPT |
| Connection Type 2 | : | NPTF |
- Steel nipples are machined using solid high-strength steel bar stock
- Chrome steel ball valve is mechanically seated to improve low pressure sealing performance
- Steel componentry is plated using RoHS compliant trivalent chrome
- Polyurethane seals
- High pressure screw together interchange
- Parker® 3000 Series
- Enerpac C604
- Interchangeable to ISO 14540
Applications: For high pressure applications including hydraulic rams and pumps where low flow and pressures up to 10000 psi are encountered
