Dixon® 8TRBF8
Send Print
  1. pin-int

Dixon® 8TRBF8

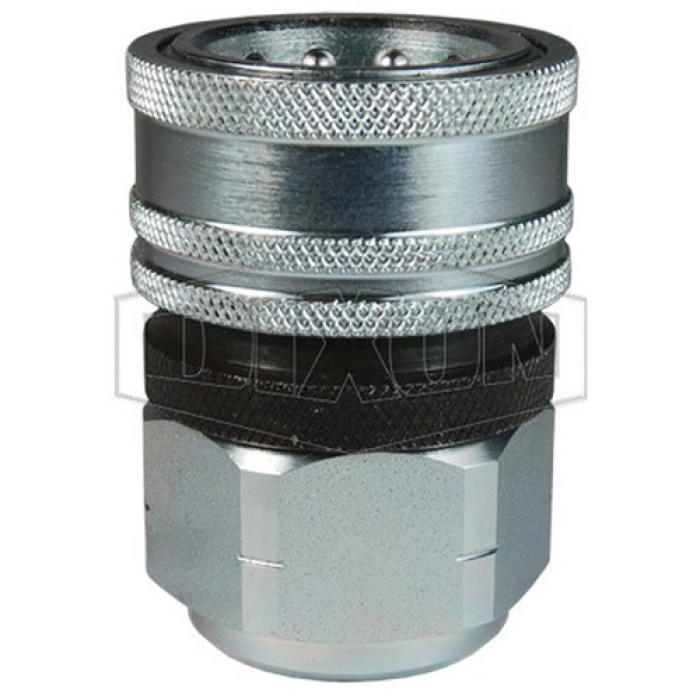

Dixon® TR Series Trivalent Chrome-Plated Steel Tema European Interchange Valved Coupler, 1 in Quick Disconnect x 1 in Female BSPP

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN 8TRBF8
  • MPN: 8TRBF8
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Tema European Interchange Valved Coupler, TR Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1 in, Connection Type 2: BSPP, Gender 2: Female, Connection Size 2: 1 in, Thread Size 2: 1-11, 3200 psi, Steel, Finish: Trivalent Chrome-Plated, Dimensions: 2.56 in OD x 3.9 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Coupler
Gender 2      :      Female
Connection Size 2      :      1 in
Thread Size 2      :      1-11
Pressure Rating      :      3200 psi
Material      :      Steel
Finish      :      Trivalent Chrome-Plated
Dimensions      :      2.56 in OD x 3.9 in L
Series      :      TR
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      1 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      1 in
Connection 2      :      1 in BSPP
Connection Type 2      :      BSPP
  • Machined components are manufactured using solid bar stock
  • Stainless steel balls, retaining rings and spring maximize corrosion resistance and extend service life
  • Steel componentry is plated using RoHS compliant trivalent chrome
  • Steel coupler sleeves are hardened to resist deformation and maximize service life
  • Nitrile (Buna-N) seals are standard
  • Couplers have a redundant O-ring sealing system (dual O-rings with inner PTFE back-up ring)
  • Valve seals are crimped in place to maintain integrity during excessive flow conditions and pressurized connection
  • Style valved
  • TEMA European interchange, TEMA 3800, 5000, 7500, 10000 Series, CEJN Series 525
