Dixon® V6M6-SS-E DXN V6M6-SS-E | Tipco Technologies
Dixon® V6M6-SS-E
Send Print
  1. pin-int

Dixon® V6M6-SS-E

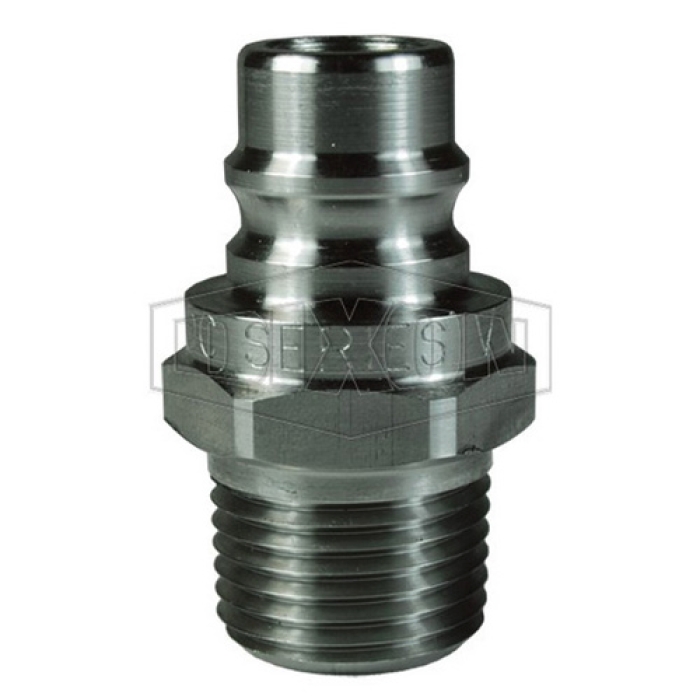

Dixon® V Series 316 Stainless Steel Snap-Tite H/IH Interchange Unvalved Plug, 3/4 in Quick Disconnect x 3/4 in MNPTF

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN V6M6-SS-E
  • MPN: V6M6-SS-E
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Snap-Tite H/IH Interchange Unvalved Plug, V Series, Connection Type 1: Quick Disconnect, Connection Size 1: 3/4 in, Connection Type 2: NPTF, Gender 2: Male, Connection Size 2: 3/4 in, Thread Size 2: 3/4-14, Hex Size: 1-3/16 in, 22600 psi, 316 Stainless Steel, Dimensions: 1.31 in OD x 2.19 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Plug
Gender 2      :      Male
Connection Size 2      :      3/4 in
Thread Size 2      :      3/4-14
Hex Size      :      1-3/16 in
Pressure Rating      :      22600 psi
Material      :      316 Stainless Steel
Dimensions      :      1.31 in OD x 2.19 in L
Series      :      V
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      3/4 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      3/4 in
Connection 2      :      3/4 in NPT
Connection Type 2      :      NPTF
  • General purpose hydraulic quick-connect provides superior flow characteristics with built-in reliability
  • Machined components are manufactured using solid bar stock
  • Interchangeable to MIL-C-51234
  • Snap-Tite H and Faster TNV
  • video www.youtube.com/embed/EvyBRYyoFrI
