Dixon® V16BF16
Send Print
  1. pin-int

Dixon® V16BF16

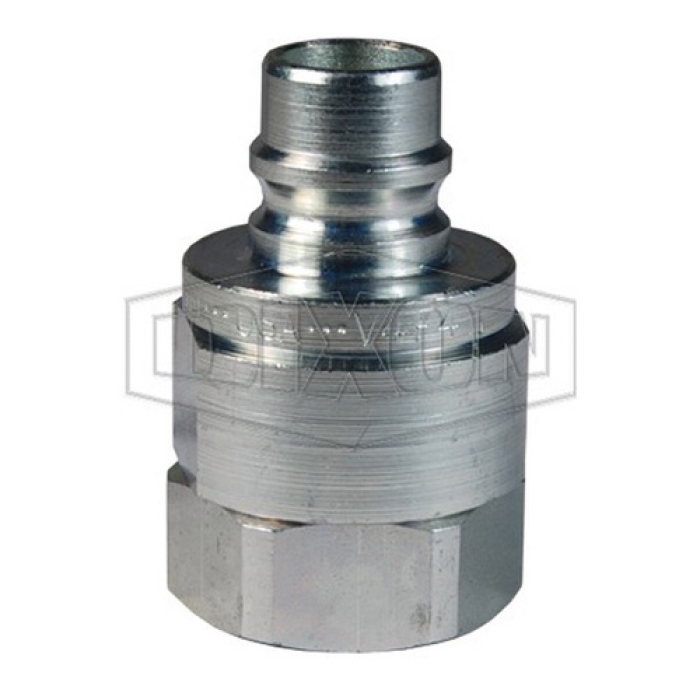

Dixon® V Series Steel Snap-Tite H/IH Interchange Valved Plug, 2 in Quick Disconnect x 2 in Female BSPP

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN V16BF16
  • MPN: V16BF16
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Snap-Tite H/IH Interchange Valved Plug, V Series, Connection Type 1: Quick Disconnect, Connection Size 1: 2 in, Connection Type 2: BSPP, Gender 2: Female, Connection Size 2: 2 in, Thread Size 2: 2-11, Hex Size: 3-1/2 in, 1500 psi, Steel, Dimensions: 3.83 in OD x 3.72 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Plug
Gender 2      :      Female
Connection Size 2      :      2 in
Thread Size 2      :      2-11
Hex Size      :      3-1/2 in
Pressure Rating      :      1500 psi
Material      :      Steel
Dimensions      :      3.83 in OD x 3.72 in L
Series      :      V
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      2 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      2 in
Connection 2      :      2 in BSPP
Connection Type 2      :      BSPP
  • General-purpose hydraulic quick-connect provides superior flow characteristics with built-in reliability
  • Steel nipples are machined from high-strength steel and induction hardened
  • Interchangeable to MIL-C-51234
  • Snap-Tite H and Faster TNV
