Dixon® V6OF6

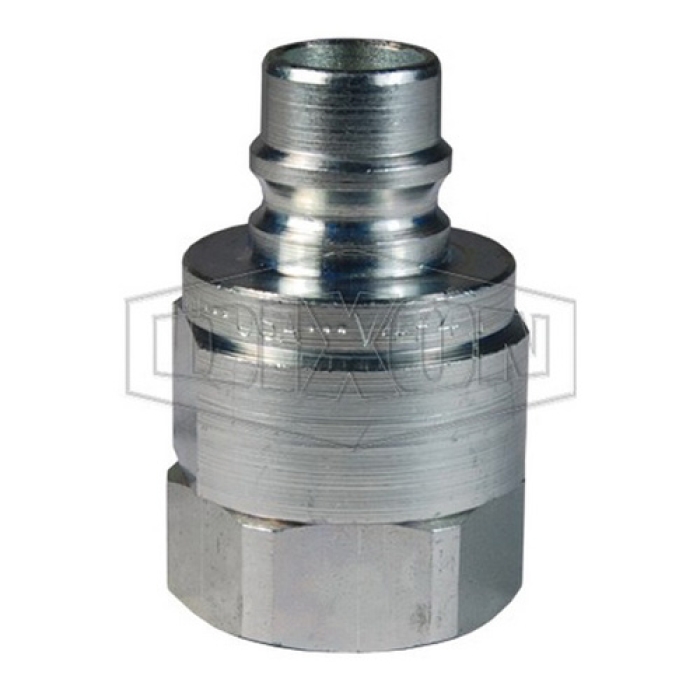

Dixon® V Series Steel Snap-Tite H/IH Interchange Valved Plug, 3/4 in Quick Disconnect x 1-1/16 in Female ORB

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN V6OF6
  • MPN: V6OF6
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Snap-Tite H/IH Interchange Valved Plug, V Series, Connection Type 1: Quick Disconnect, Connection Size 1: 3/4 in, Connection Type 2: ORB, Gender 2: Female, Connection Size 2: 1-1/16 in, Thread Size 2: 1-1/16-12, Hex Size: 1-1/2 in, 3500 psi, Steel, Dimensions: 1.65 in OD x 2.8 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Plug
Gender 2      :      Female
Connection Size 2      :      1-1/16 in
Thread Size 2      :      1-1/16-12
Hex Size      :      1-1/2 in
Pressure Rating      :      3500 psi
Material      :      Steel
Dimensions      :      1.65 in OD x 2.8 in L
Series      :      V
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      3/4 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      3/4 in
Connection 2      :      1-1/16 in ORB
Connection Type 2      :      ORB
  • General-purpose hydraulic quick-connect provides superior flow characteristics with built-in reliability
  • Steel nipples are machined from high-strength steel and induction hardened
  • Interchangeable to MIL-C-51234
  • Snap-Tite H and Faster TNV
