Dixon® V3F4 DXN V3F4 | Tipco Technologies
Dixon® V3F4
Send Print
  1. pin-int

Dixon® V3F4

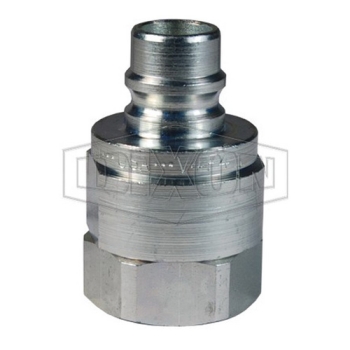

Dixon® V Series Steel Snap-Tite H/IH Interchange Valved Plug, 3/8 in Quick Disconnect x 1/2 in FNPTF

  • Manufacturers: Dixon
  • Brand Name: Dixon®
  • Tipco Part No: DXN V3F4
  • MPN: V3F4
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Dixon® Snap-Tite H/IH Interchange Valved Plug, V Series, Connection Type 1: Quick Disconnect, Connection Size 1: 3/8 in, Connection Type 2: NPTF, Gender 2: Female, Connection Size 2: 1/2 in, Thread Size 2: 1/2-14, Hex Size: 1 in, 4500 psi, Steel, Dimensions: 1.1 in OD x 1.94 in L, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Plug
Gender 2      :      Female
Connection Size 2      :      1/2 in
Thread Size 2      :      1/2-14
Hex Size      :      1 in
Pressure Rating      :      4500 psi
Material      :      Steel
Dimensions      :      1.1 in OD x 1.94 in L
Series      :      V
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      3/8 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      3/8 in
Connection 2      :      1/2 in NPT
Connection Type 2      :      NPTF
  • General-purpose hydraulic quick-connect provides superior flow characteristics with built-in reliability
  • Steel nipples are machined from high-strength steel and induction hardened
  • Interchangeable to MIL-C-51234
  • Snap-Tite H and Faster TNV

Applications: For construction, food service, manufacturing, military, oil field, offshore and petrochemical
