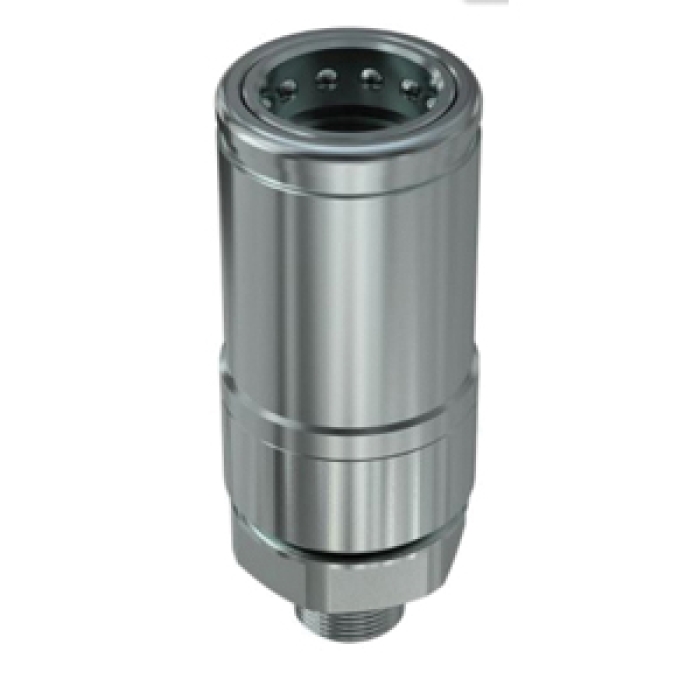

Faster Coupling, Series: CFPV, Connection Type 1: Push-to-Connect, Connection Size 1: 3/4 in, Connection Type 2: SAE Threaded, Gender 2: Male, Connection Size 2: 3/4 in, Thread Size 2: 1-1/16-12 UN, Hex Size: 1.65 in, 25 Mpa, Steel, Dimensions: 4.55 in L x 1.89 in W, -13 to 257 deg F
| Fitting Type | : | Coupling |
| Gender 2 | : | Male |
| Connection Size 2 | : | 3/4 in |
| Thread Size 2 | : | 1-1/16-12 UN |
| Hex Size | : | 1.65 in |
| Pressure Rating | : | 25 Mpa |
| Material | : | Steel |
| Dimensions | : | 4.55 in L x 1.89 in W |
| Series | : | CFPV |
| Temperature Rating | : | -13 to 257 deg F |
| Connection 1 | : | 3/4 in Push-to-Connect |
| Connection Type 1 | : | Push-to-Connect |
| Connection Size 1 | : | 3/4 in |
| Connection 2 | : | 3/4 in Threaded |
| Connection Type 2 | : | SAE Threaded |
Push-pull female couplings with breakaway function. Not suitable for connection under pressure. Commonly used for Power Beyond applications. ISO 7241 part A interchange.
- NBR seal
- Poppet valve
Applications: For agriculture and garbage trucks
