ZSI-Foster 2302
Send Print
  1. pin-int

ZSI-Foster 2302

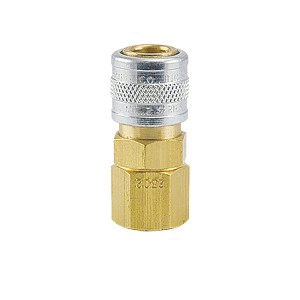

ZSI-Foster 2 Series Brass/Steel Socket, 1/8 in Quick Disconnect x 1/8 in FNPT

  • Manufacturers: ZSI-Foster
  • Brand Name: ZSI-Foster
  • Tipco Part No: FOS 2302
  • MPN: 2302
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

ZSI-Foster Socket, 2 Series, Connection Type 1: Quick Disconnect, Connection Size 1: 1/8 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 1/8 in, Thread Size 2: 1/8-27, Hex Size: 9/16 in, 300 psig, Brass/Steel, Dimensions: 0.63 in Dia x 1.44 in L, Dimension Standards: ANSI/NFPA T3.20.14-1990, ISO 6150-B, -40 to 250 deg F

California residents see Prop 65 WARNINGS

Fitting Type      :      Socket
Gender 2      :      Female
Connection Size 2      :      1/8 in
Thread Size 2      :      1/8-27
Hex Size      :      9/16 in
Pressure Rating      :      300 psig
Material      :      Brass/Steel
Dimensions      :      0.63 in Dia x 1.44 in L
Dimension Standards      :      ANSI/NFPA T3.20.14-1990, ISO 6150-B
Series      :      2
Temperature Rating      :      -40 to 250 deg F
Connection 1      :      1/8 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Connection Size 1      :      1/8 in
Connection 2      :      1/8 in NPT
Connection Type 2      :      NPT
