Aeroquip® 10FFP37 AER 10FFP37 | Tipco Technologies
Aeroquip® 10FFP37
Send Print
  1. pin-int

Aeroquip® 10FFP37

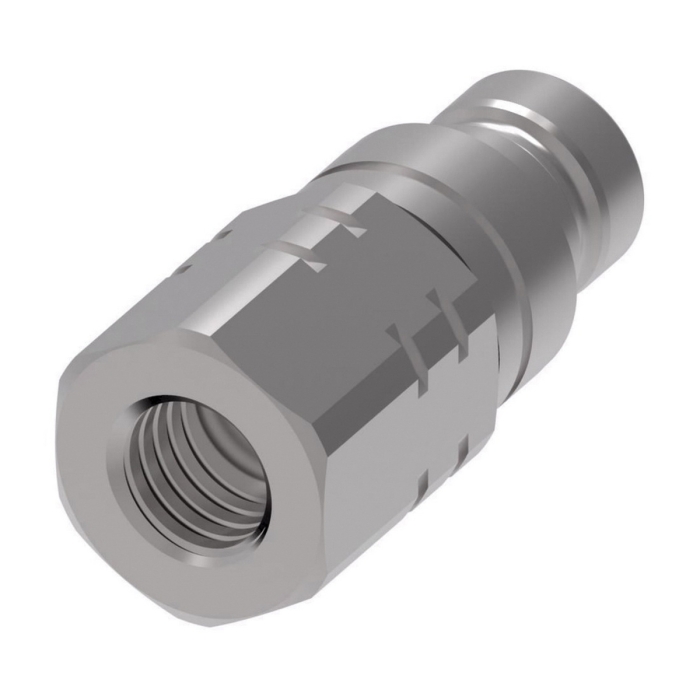

Aeroquip® FF Series Guardian Seal™ Carbon Steel Interchange Coupling Plug, 3/8 in Male Quick Disconnect x 3/8 in FNPT

  • Manufacturers: Danfoss
  • Brand Name: Aeroquip®
  • Tipco Part No: AER 10FFP37
  • MPN: 10FFP37
  • UPC: 678146030986
  • Min. Order Qty: 1
  • Qty. Interval: 1
  • Register to see Availability

Aeroquip® Interchange Coupling Plug, FF Series, Connection Type 1: Quick Disconnect, Gender 1: Male, Connection Size 1: 3/8 in, Connection Type 2: NPT, Gender 2: Female, Connection Size 2: 3/8 in, Thread Size 2: 3/8-18f, Hex Size: 1.06 in, 5800 psi, Carbon Steel, Finish: Guardian Seal™, Dimensions: 2.56 in L x 1.16 in W x 1.16 in H, Dimension Standards: ISO 16028, -13 to 212 deg F

Fitting Type      :      Plug
Gender 2      :      Female
Connection Size 2      :      3/8 in
Thread Size 2      :      3/8-18f
Hex Size      :      1.06 in
Pressure Rating      :      5800 psi
Material      :      Carbon Steel
Finish      :      Guardian Seal™
Dimensions      :      2.56 in L x 1.16 in W x 1.16 in H
Dimension Standards      :      ISO 16028
Series      :      FF
Temperature Rating      :      -13 to 212 deg F
Connection 1      :      3/8 in Quick Disconnect
Connection Type 1      :      Quick Disconnect
Gender 1      :      Male
Connection Size 1      :      3/8 in
Connection 2      :      3/8 in NPT
Connection Type 2      :      NPT

Danfoss's FF Series flat face is specifically designed for those applications where quick and easy connections and no-spill performance are essential. The FF Series is ideal for use when global interchangeability with other manufacturers is important and is available in sizes from 1/4 in through 2 in to best meet your specific size requirements.

  • Standard sleeve lock prevents accidental disconnection
  • Color identification rings available to help prevent crossing of lines
  • High-resistant carbon steel with guardian seal™ plating, a whole new level of corrosion resistance with minimum 720 hr RR protection
  • Nickel-free, solvent-free guardian seal™ plating
  • NBR+AU seal

Applications: Hydraulic and fluid transfer, construction equipment, agricultural equipment, utility vehicles, on-highway vehicles, stationary in-plant hydraulics and fluid transfer, interchangeable with HTMA couplings in the 3/8 in size
